OBD-II Drive Cycles
›
Drive Cycles (1998 & 2013 Models)
›
Drive Cycle Patterns
›
Drive Cycle Pattern No. 2
Drive Cycle Pattern No. 2

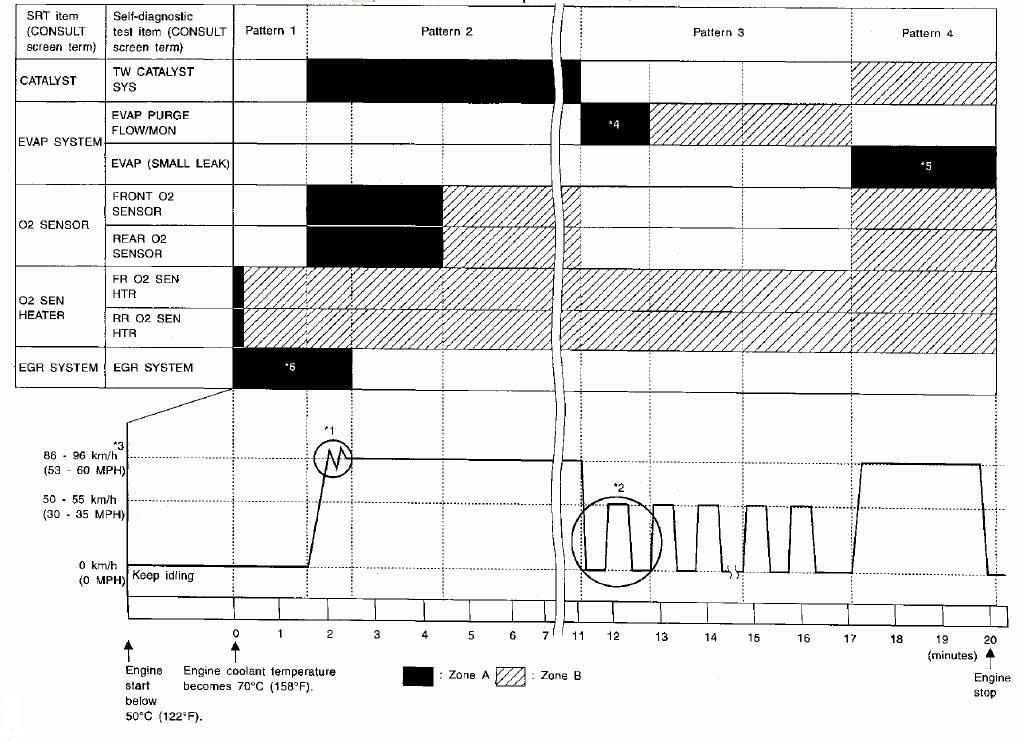

Fig 1: Drive Cycle Pattern No. 2

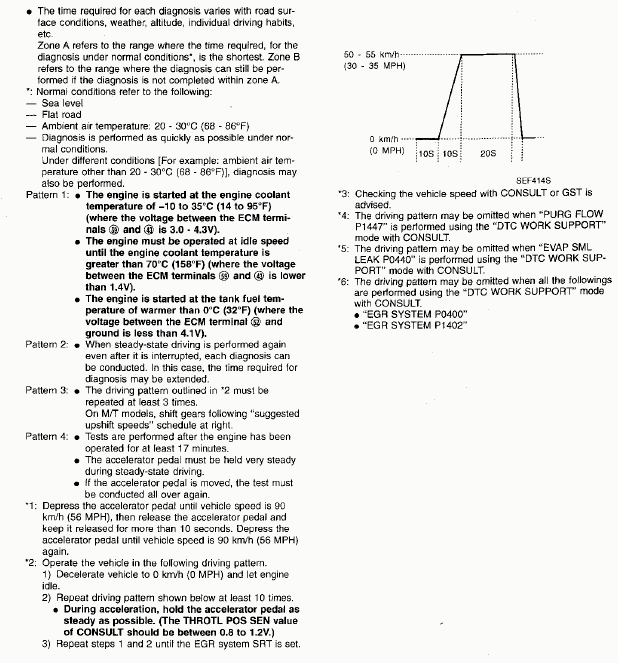

Fig 2: Drive Cycle Legend No. 2
