Drive Cycle Patterns
›
Drive Cycle Pattern No. 20
Drive Cycle Pattern No. 20

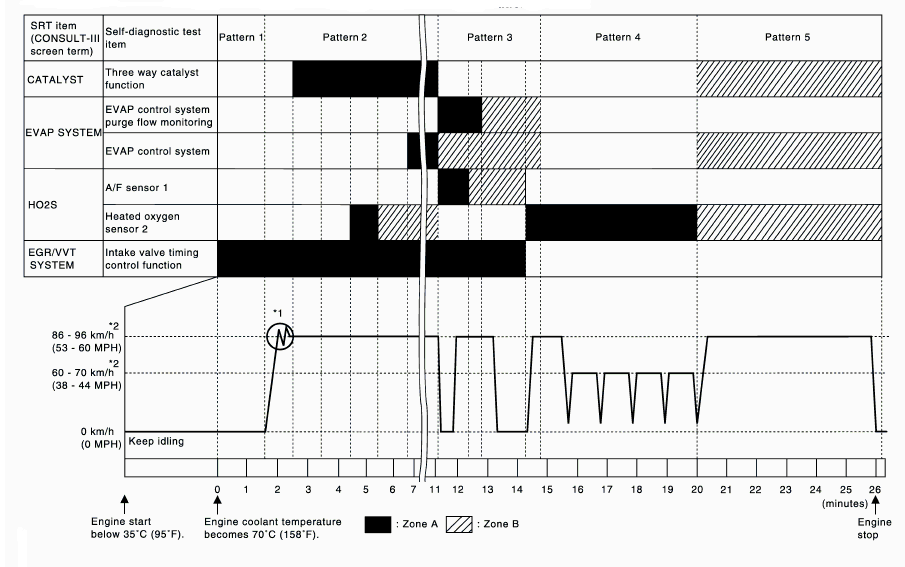

Fig 1: Drive Cycle Pattern No. 20

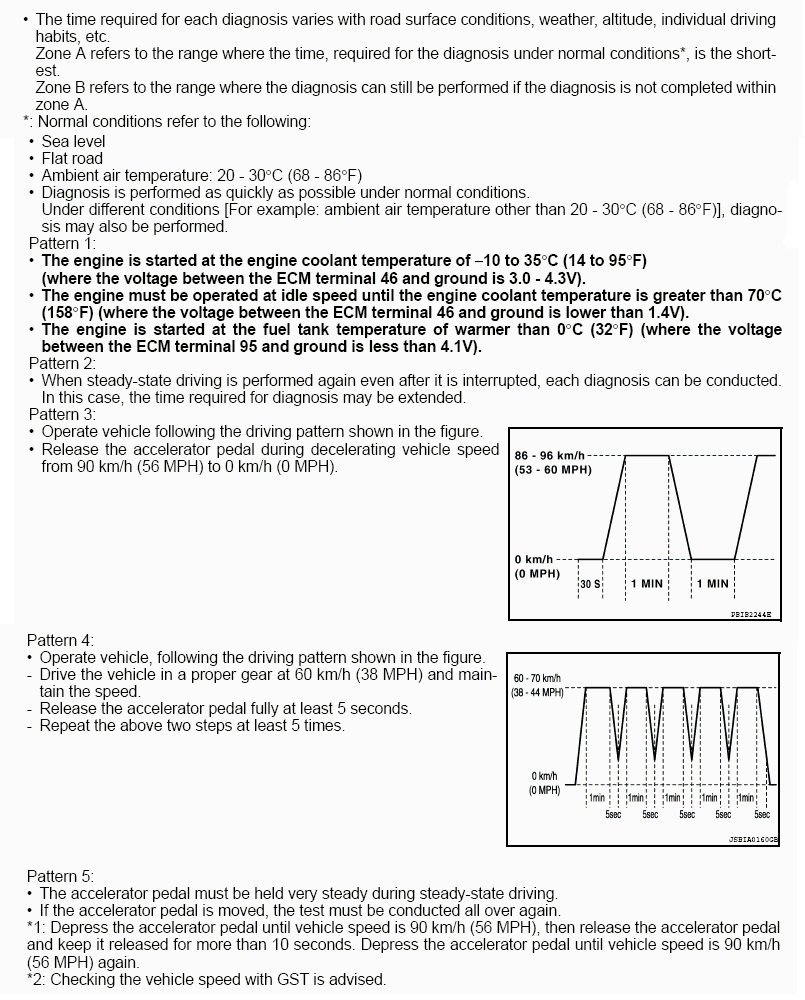

Fig 2: Drive Cycle Legend No. 20
