Exploded View

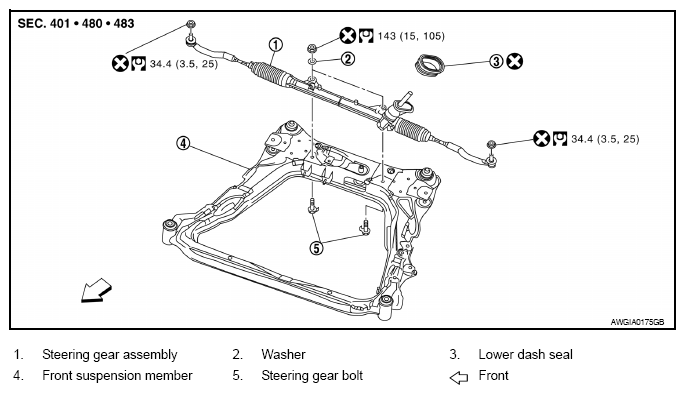

Fig 1: Exploded View Of Power Steering Gear With Torque Specifications
G08180948Courtesy of NISSAN NORTH AMERICA, INC.

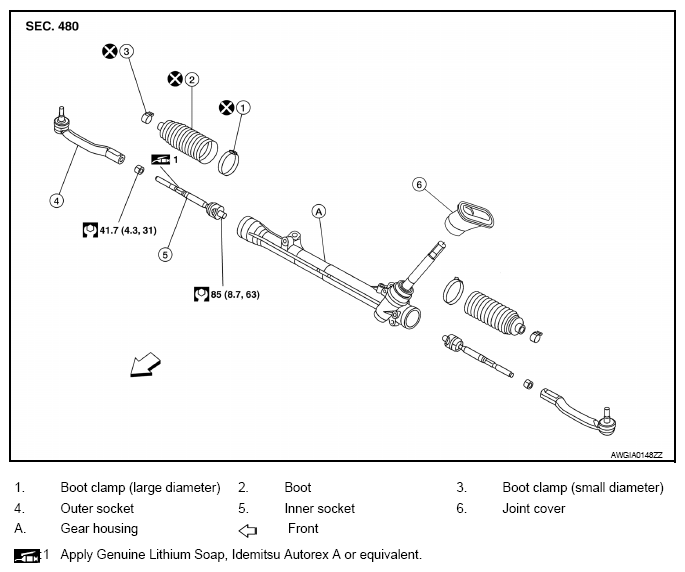

Fig 1: Exploded View Of Steering Gear Assembly With Torque Specifications
G08180949Courtesy of NISSAN NORTH AMERICA, INC.
