Cross-Sectional View - RE0F10A
Cross-Sectional View - RE0F10A

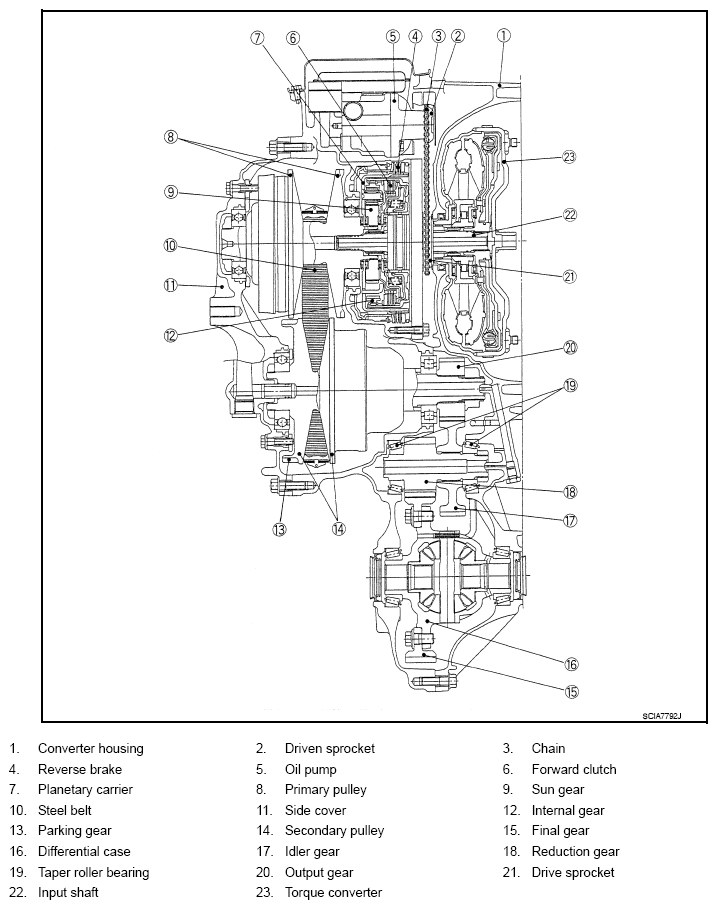

Fig 1: Cross-Sectional View Of CVT System
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
