Control Cable Components
Control Cable Components

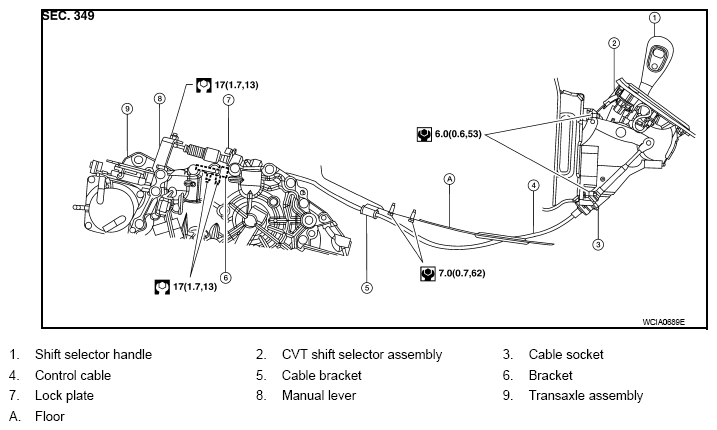

Fig 1: Control Cable Replacement Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
