Removal and Installation (MR20DE): Components

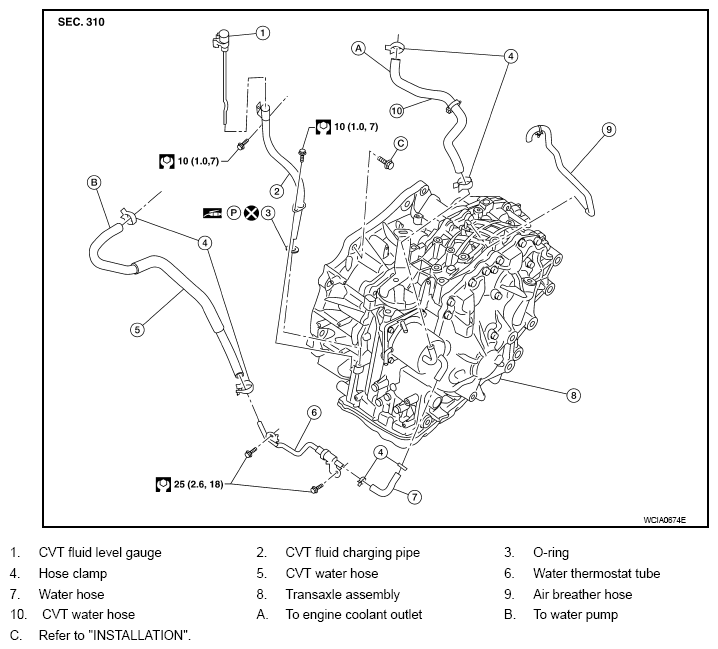

Fig 1: Exploded View Of Transaxle Assembly With Torque Specifications (MR20DE)

Courtesy of NISSAN NORTH AMERICA, INC.

WARNING: Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure coolant escaping from the radiator.

CAUTION: When replacing TCM and transaxle assembly as a set, replace transaxle assembly first and then replace TCM. Refer to "SERVICE AFTER REPLACING TCM, TRANSAXLE ASSEMBLY, OR CONTROL VALVE ".

NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
