Engine Control System - Component Testing (Hatchback)
›
ASCD Indicator
›
Wiring Diagram
ASCD Indicator: Wiring Diagram

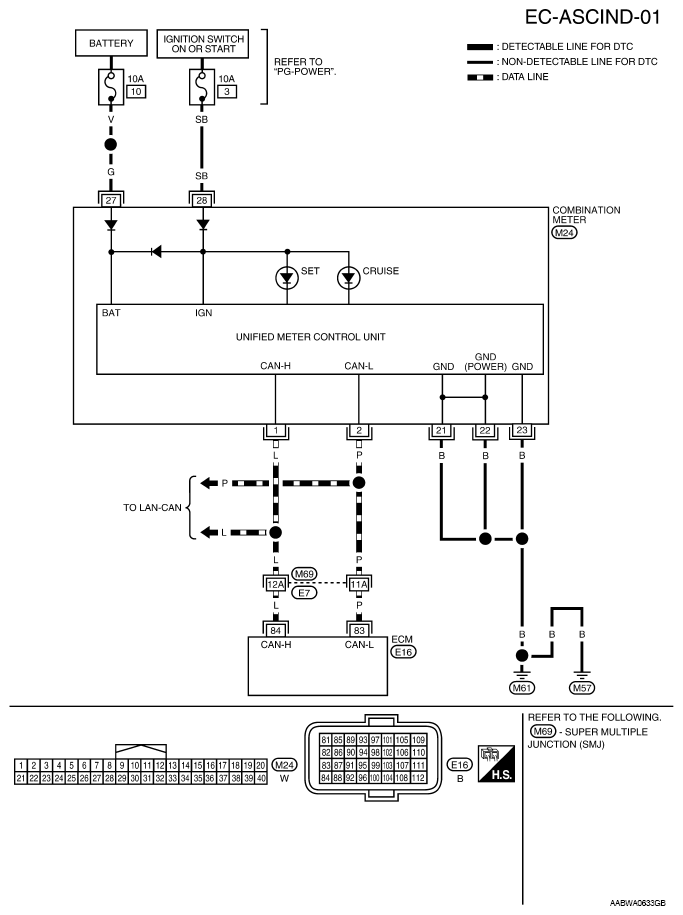

Fig 1: ACSD Indicator Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
