Throttle Control Motor

Disconnect electric throttle control actuator harness connector.
Check resistance between terminals 5 and 6.

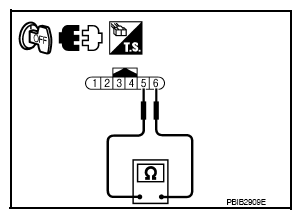

Fig 1: Checking Throttle Control Motor
Courtesy of NISSAN NORTH AMERICA, INC.

Resistance: Approximately 1 - 15 Ω [at 25 °C (77°F)]
If NG, replace electric throttle control actuator and go to next step. Refer to "COMPONENT ".
