Engine Control System - Introduction (Hatchback)
›
Service Information
›
Trouble Diagnosis
›
Circuit Diagram
Circuit Diagram

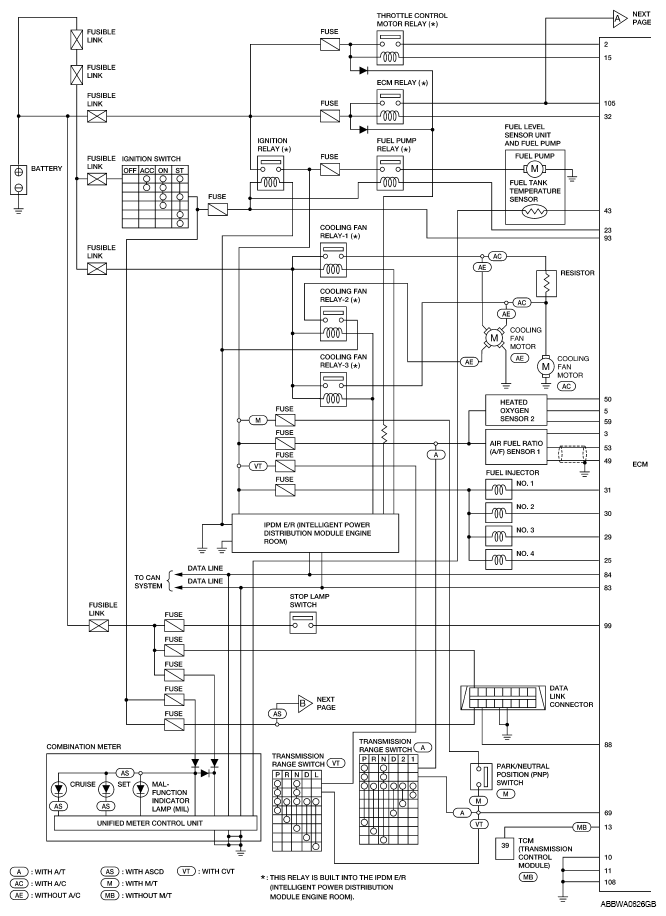

Fig 1: Vacuum Control System Circuit Wiring Diagram (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

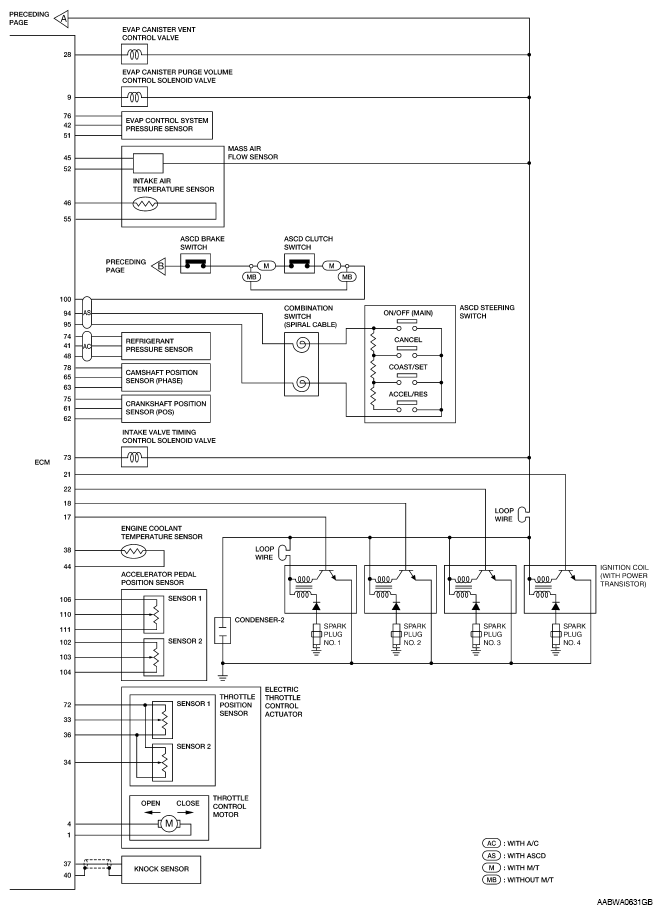

Fig 2: Vacuum Control System Circuit Wiring Diagram (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
