Versa S, 4D Hatchback, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System - Introduction (Hatchback)
›
Service Information
›
Trouble Diagnosis
›
Symptom Matrix Chart
›
System - Basic Engine Control System
System - Basic Engine Control System

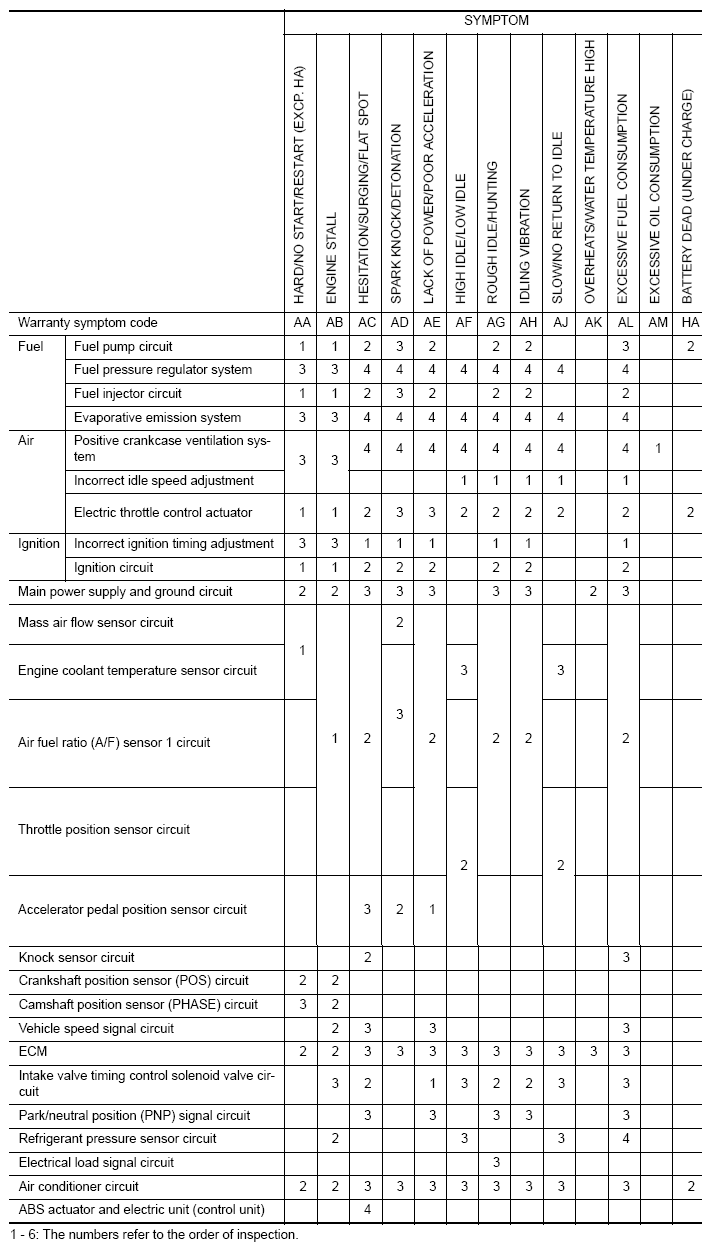

Fig 1: Identifying Basic Engine Control System Symptom Matrix Chart
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
