Overall Sequence

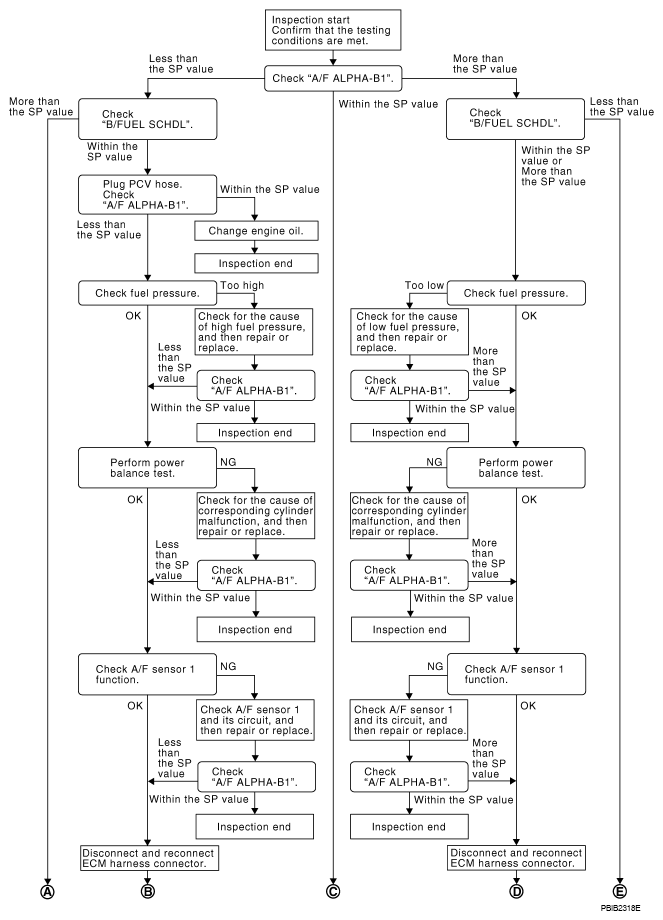

Fig 1: Diagnostic Procedure Flow Chart Overall Sequence (1 Of 2)
G08275286Courtesy of NISSAN NORTH AMERICA, INC.

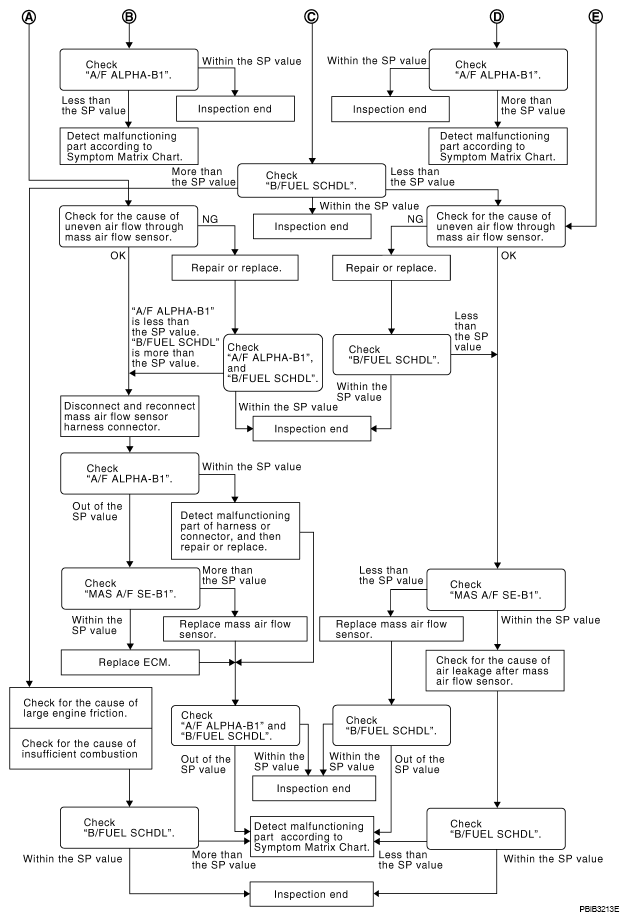

Fig 2: Diagnostic Procedure Flow Chart Overall Sequence (2 Of 2)
G08275287Courtesy of NISSAN NORTH AMERICA, INC.
