Home › Nissan-Datsun › 2012 › Versa SV › Repair and Diagnosis › Engine Mechanical › Engine Mechanical (Sedan) › Unit Disassembly And Assembly › Cylinder Block › Exploded View

Exploded View

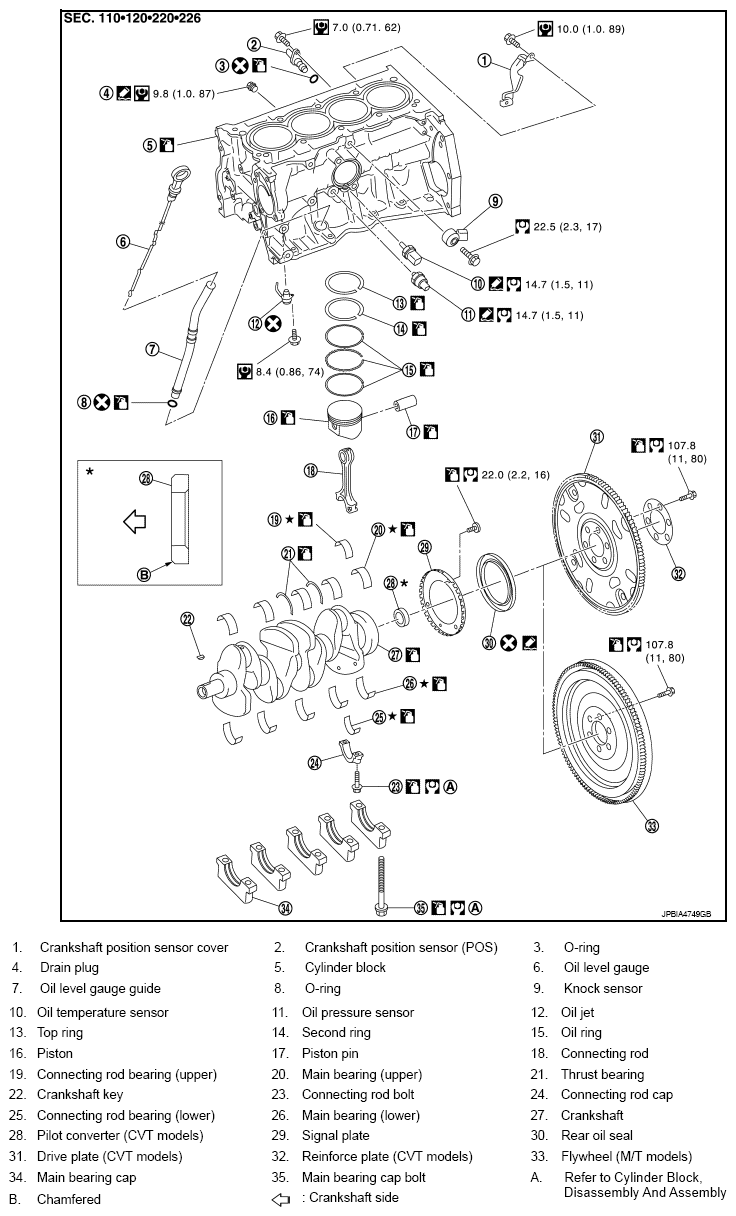

Fig 1: Cylinder Block With Torque Specifications
G08199281Courtesy of NISSAN NORTH AMERICA, INC.
