Ignition Timing: Inspection

  1. CHECK IGNITION TIMING
    1. Attach timing light (A) to loop wire (1) as shown below.

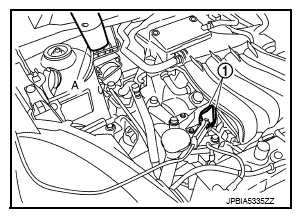

      Fig 1: Identifying Timing Light And Loop Wire
      G08199655Courtesy of NISSAN NORTH AMERICA, INC.
    2. Check ignition timing.

      : INSPECTION END

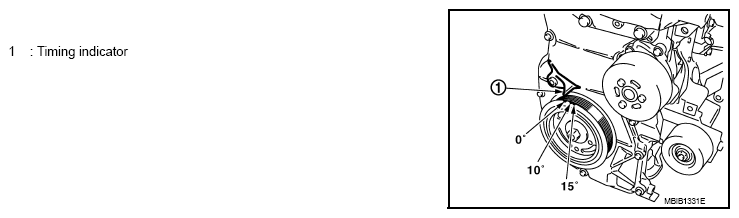

      Fig 2: Identifying Ignition Timing And Timing Indicator
      G08199656Courtesy of NISSAN NORTH AMERICA, INC.
