Removal and Installation: Removal

  1. Remove battery. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove IPDM E/R. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove IPDM E/R cover (1).

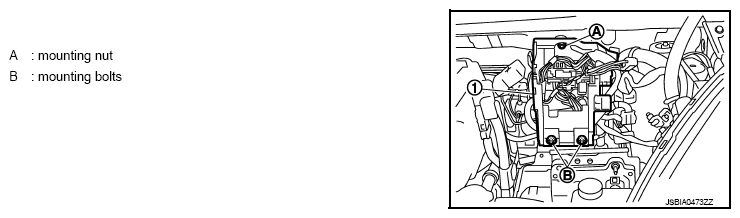

    Fig 1: Identifying IPDM E/R Cover And Mounting Nuts And Bolts
    G08199664Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect ECM harness connectors.
  5. Remove ECM mounting nuts.
  6. Remove ECM from ECM bracket.
