Engine Control System - Component Testing
›
Symptom Diagnosis
›
Engine Control System Symptoms
›
Symptom Matrix Chart
›
System - Engine Mechanical & Other
System - Engine Mechanical & Other

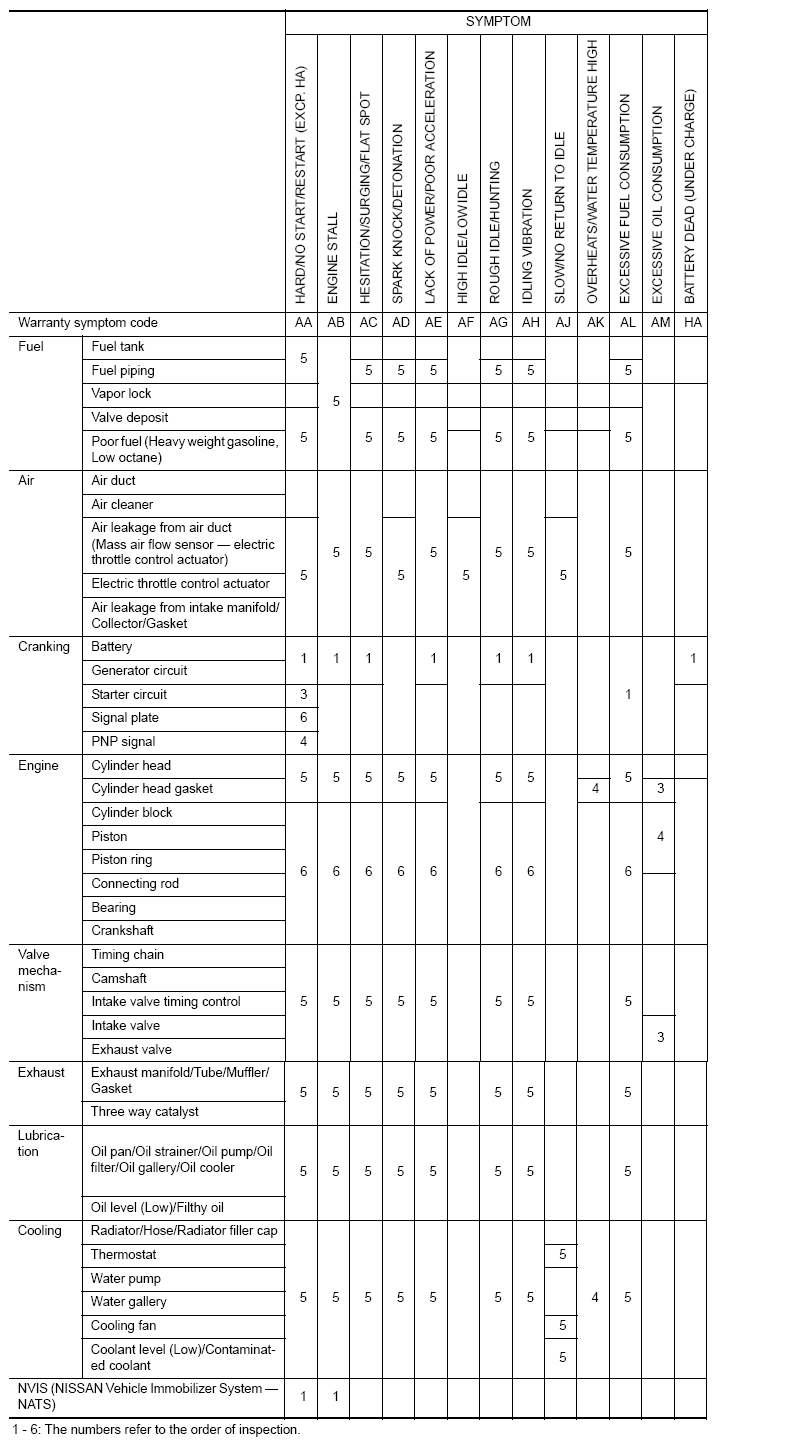

Fig 1: Engine Control System Symptoms Chart (Engine Mechanical & Other)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
