Engine Control System - Introduction
›
System Description
›
Variable Induction Air System
›
Vacuum Hose Drawing
Vacuum Hose Drawing

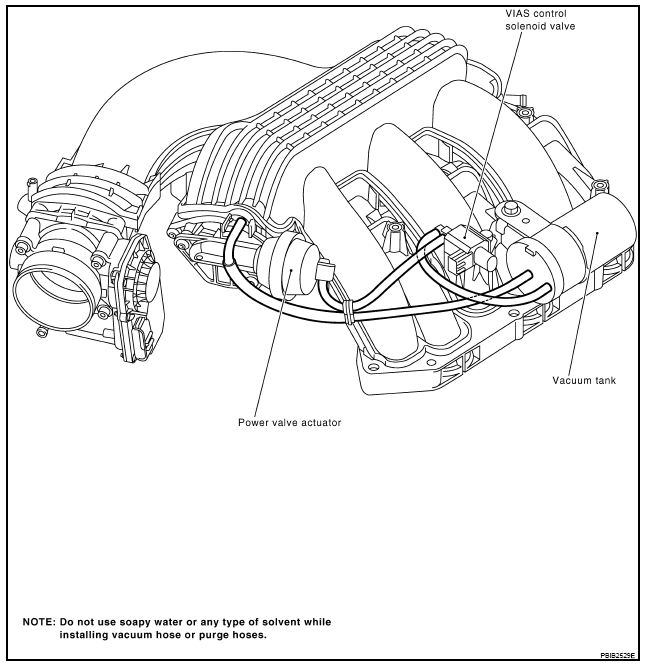

Fig 1: Identifying Vias Control Solenoid Valve, Vacuum Tank And Power Valve Actuator
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
SYSTEM DIAGRAM
"
for Vacuum Control System.
