Notes
Disassembly and Assembly: Notes

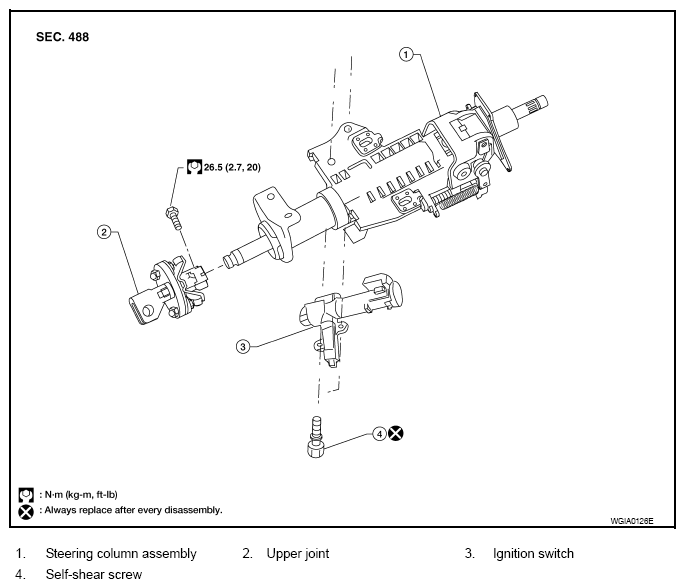

Fig 1: Disassembled View Of Steering Column With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
