Exploded View: Components

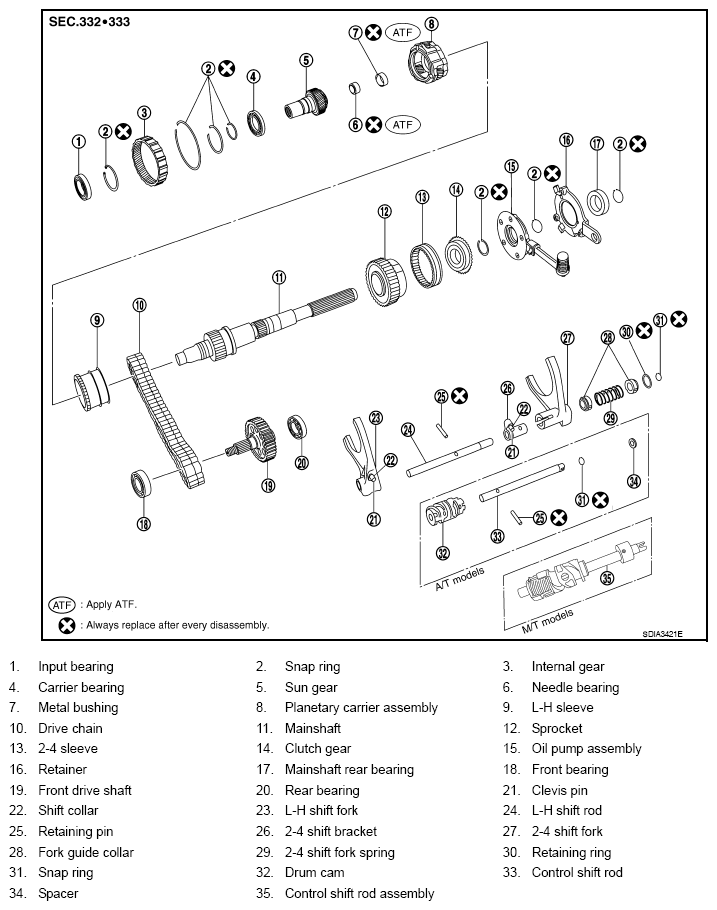

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

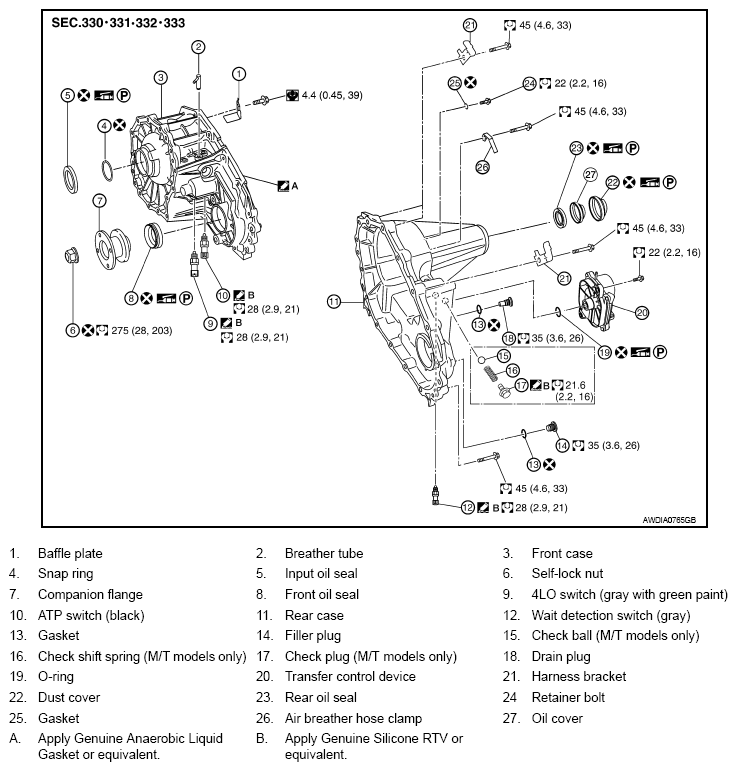

Fig 2: Exploded View Of Transfer Assembly With Torque Specifications (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
