Control System Connector Terminal Identification

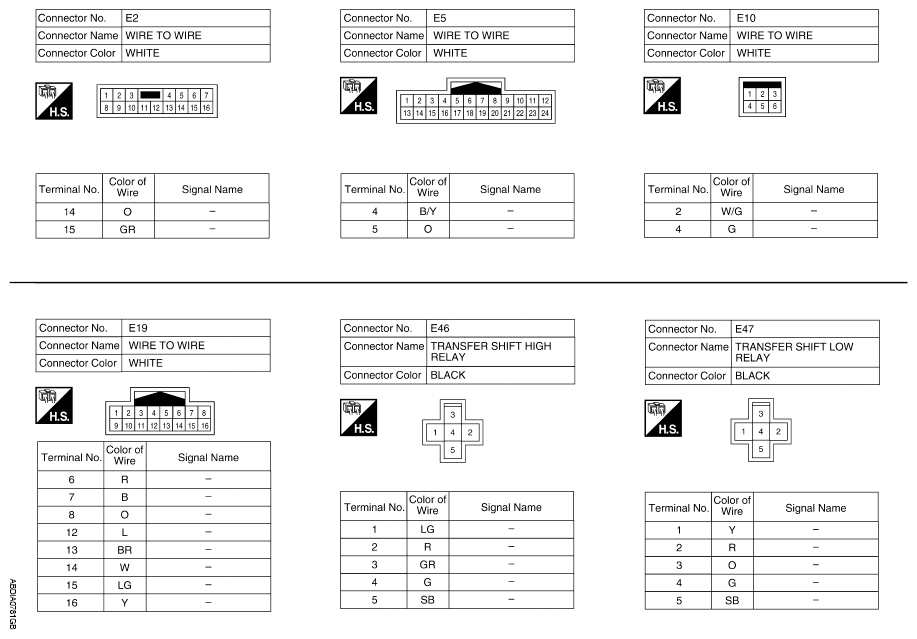

Fig 1: Identifying Part Time 4WD System Connectors (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

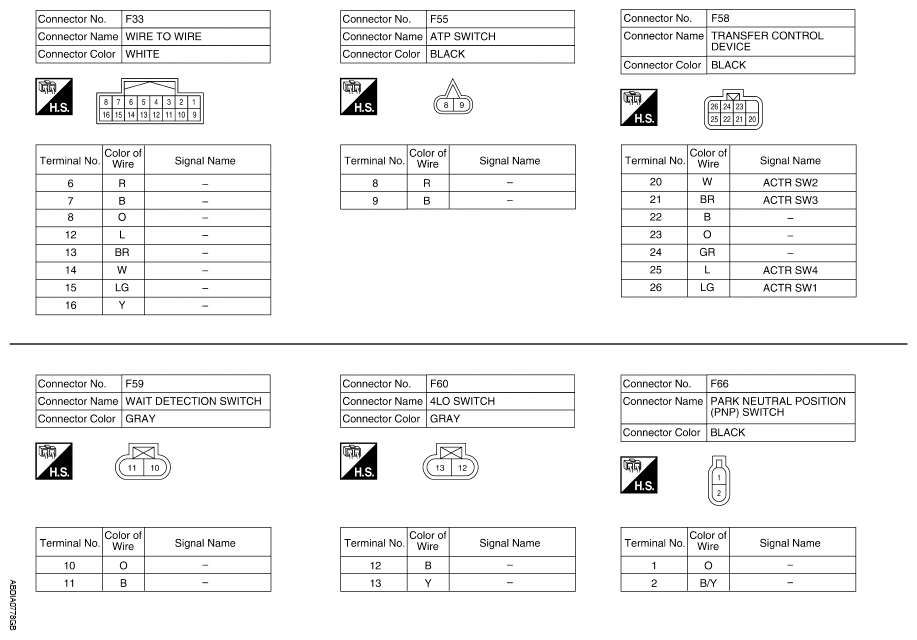

Fig 2: Identifying Part Time 4WD System Connectors (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

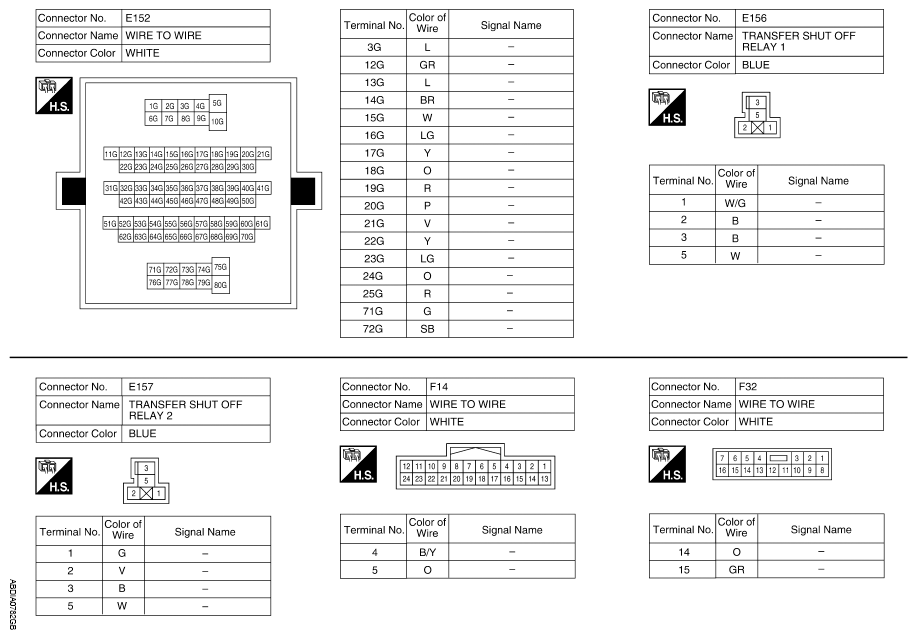

Fig 3: Identifying Part Time 4WD System Connectors (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

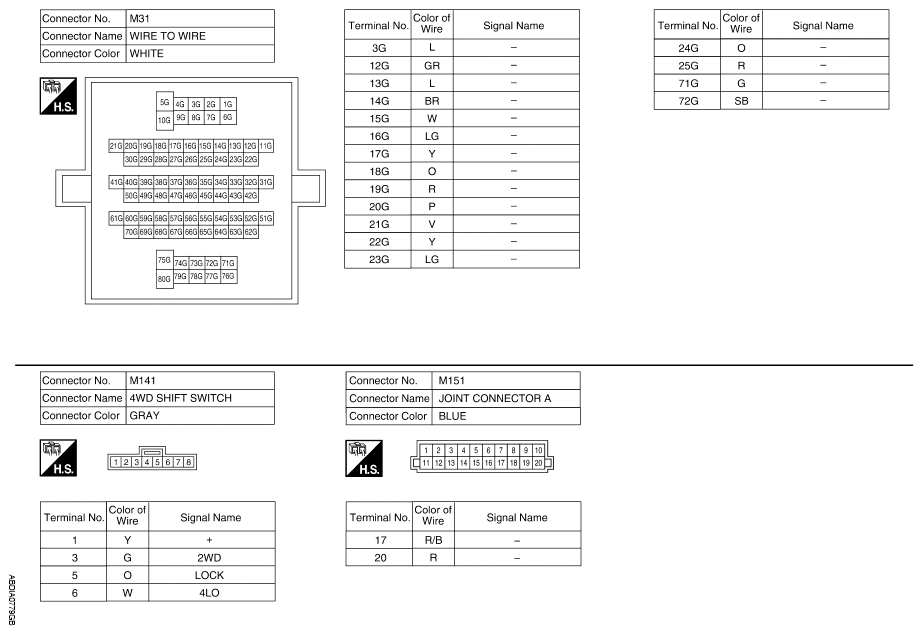

Fig 4: Identifying Part Time 4WD System Connectors (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

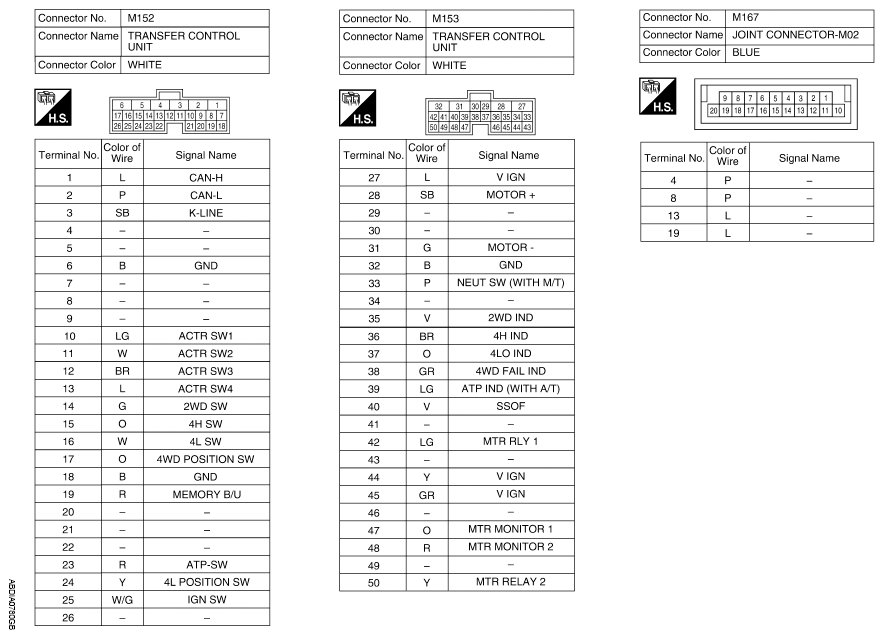

Fig 5: Identifying Part Time 4WD System Connectors (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

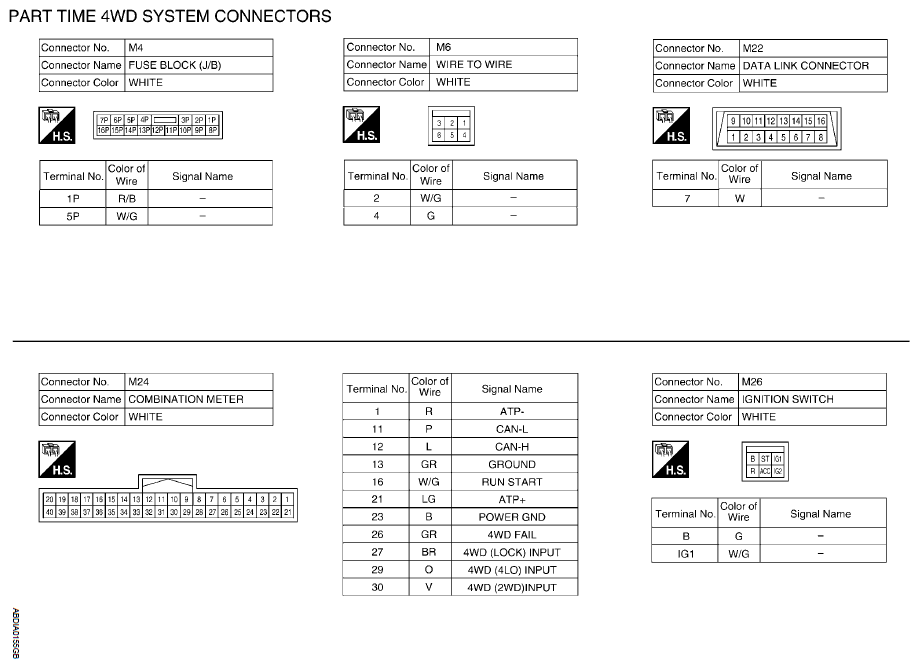

Fig 6: Identifying Part Time 4WD System Connectors (6 Of 6)
