Disassembly and Assembly: Notes

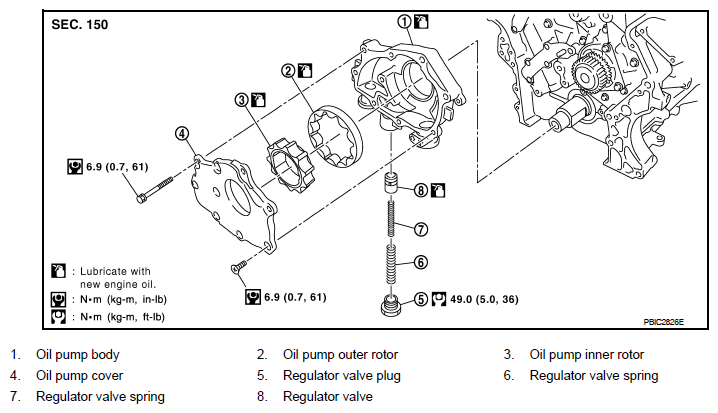

Fig 1: Disassembled View Of Oil Pump With Torque Specifications
G08200773Courtesy of NISSAN NORTH AMERICA, INC.
