Exploded View
›
Disassembly
Exploded View: Disassembly

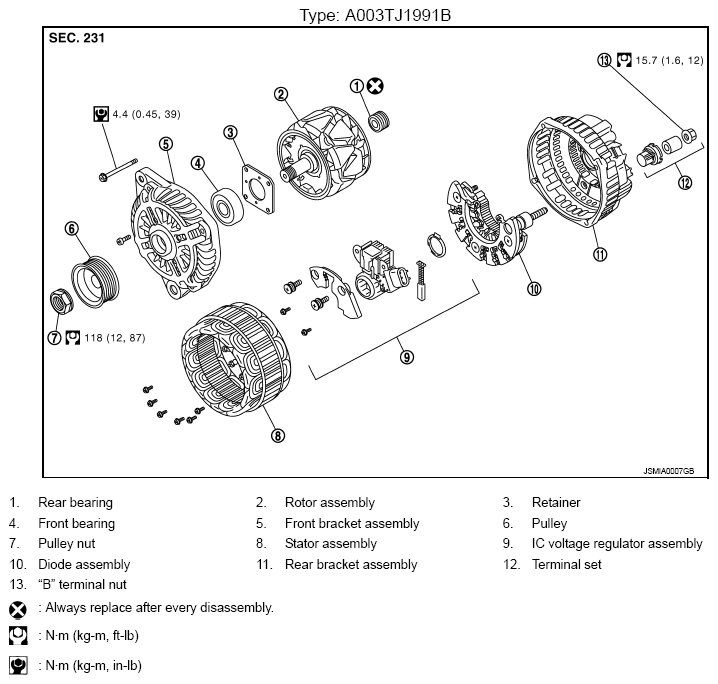

Fig 1: Disassembled View Of Alternator With Torque Specifications (Type: A003TJ1991B)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
