Starter Motor
›
Exploded View
›
Disassembly
Exploded View: Disassembly

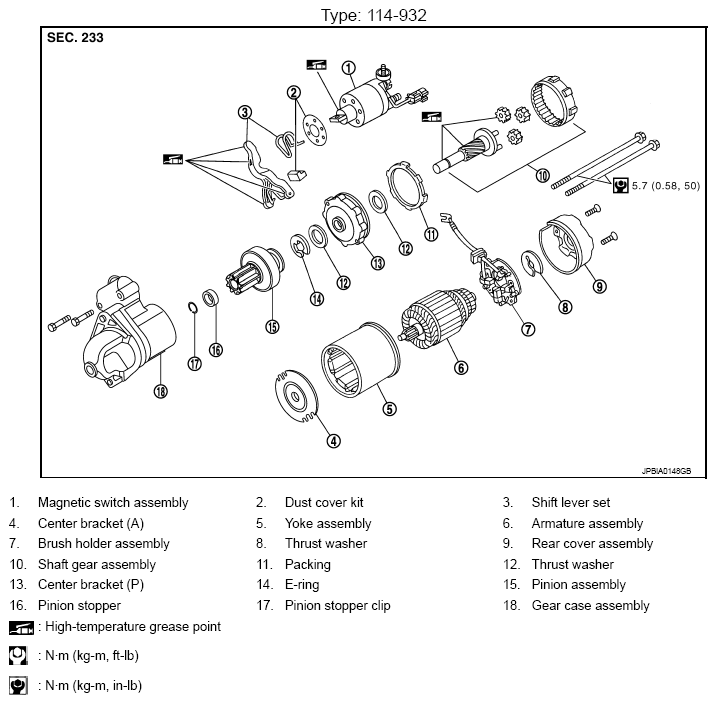

Fig 1: Starter Motor Replacement Components With Torque Specifications (Type 114-932)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
