System - Engine Mechanical & Other

Fig 1: Identifying Engine Mechanical & Other Control System Symptom Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

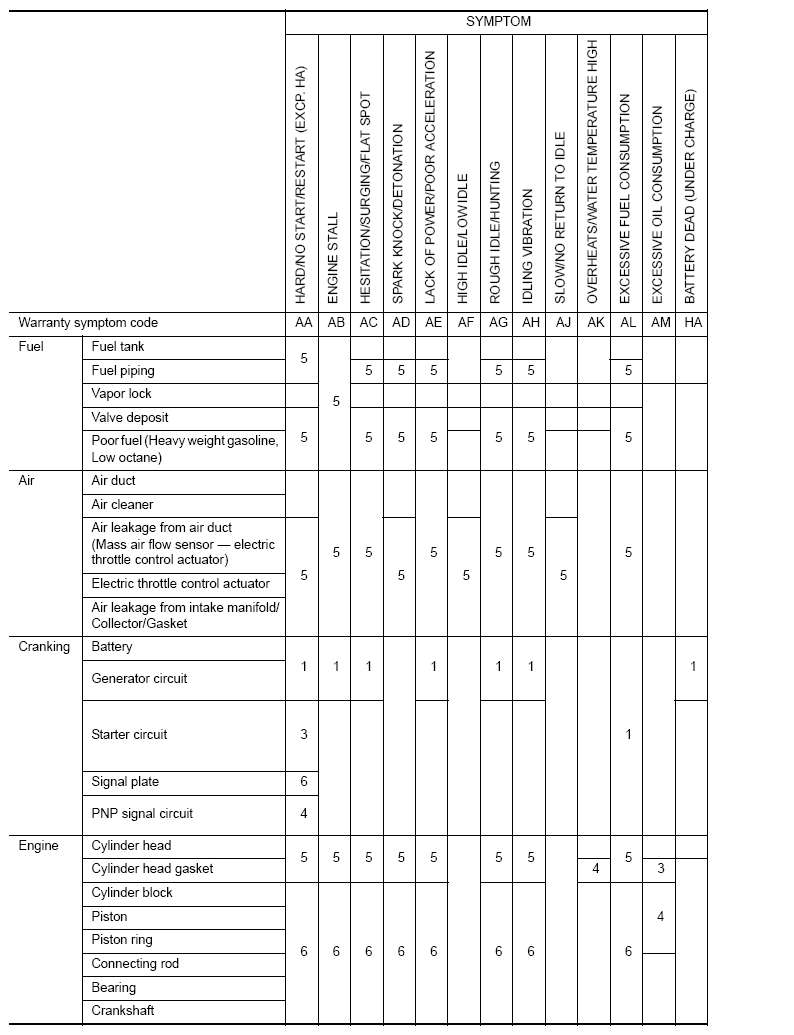

Fig 2: Identifying Engine Mechanical & Other Control System Symptom Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
