Ignition Timing: Inspection

CHECK IGNITION TIMING
1. Attach timing light (A) to the ignition coil No. 1 harness.

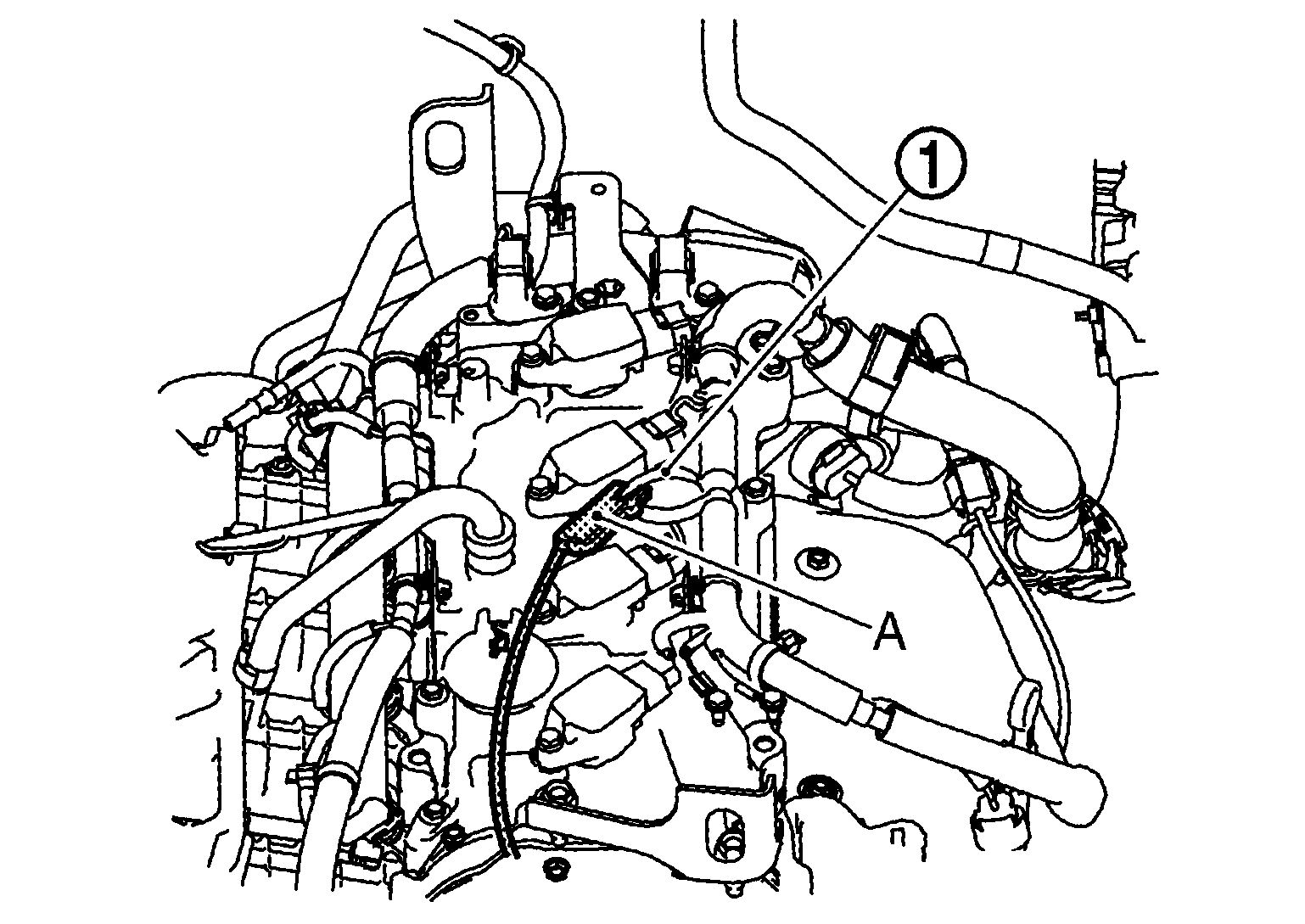

  Fig 1: Identifying Timing Light And Ignition Coil No. 1 Harness
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.

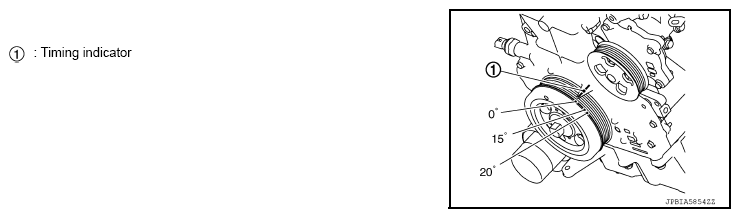

  Fig 2: Checking Ignition Timing Using Timing Indicator
  Courtesy of NISSAN NORTH AMERICA, INC.

  >> INSPECTION END
