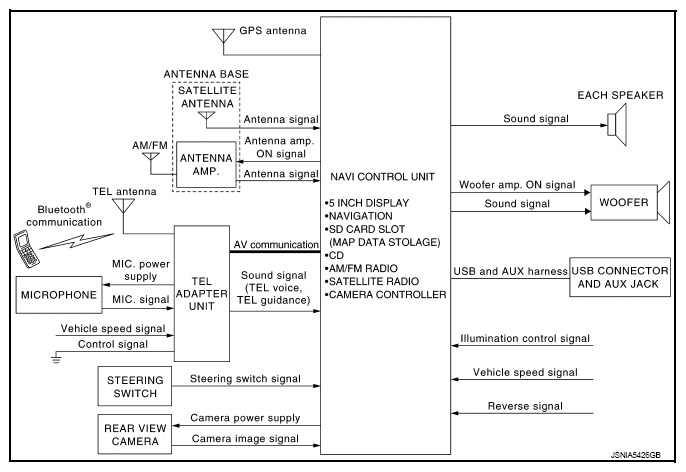

System Diagram
WARNING: This page is about a different car, the 2013 Nissan Cube. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
An antenna base integrated with radio antenna amp. and satellite radio antenna is adopted.
Courtesy of NISSAN NORTH AMERICA, INC.
