Section 31 (Security Control System (Coupe))
›
System Description
›
Vehicle Security System
›
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

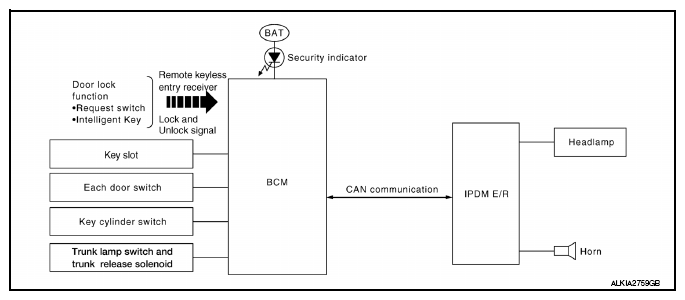

Fig 1: Vehicle Security System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
