Removal and Installation: Removal

  1. Remove power window main switch finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove power window main switch (1) from power window main switch finisher (2) using remover tool (A).
    CAUTION: Do not fold the pawl of power window main switch finisher.

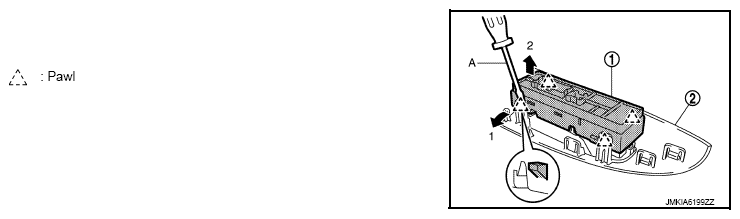

    Fig 1: Removing Power Window Main Switch From Power Window Main Switch Finisher Using Remover Tool
    G08707662Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: The same procedure is also performed for front power window switch (passenger side) and rear power window switch (LH & RH).
