Exploded View: Disassembly

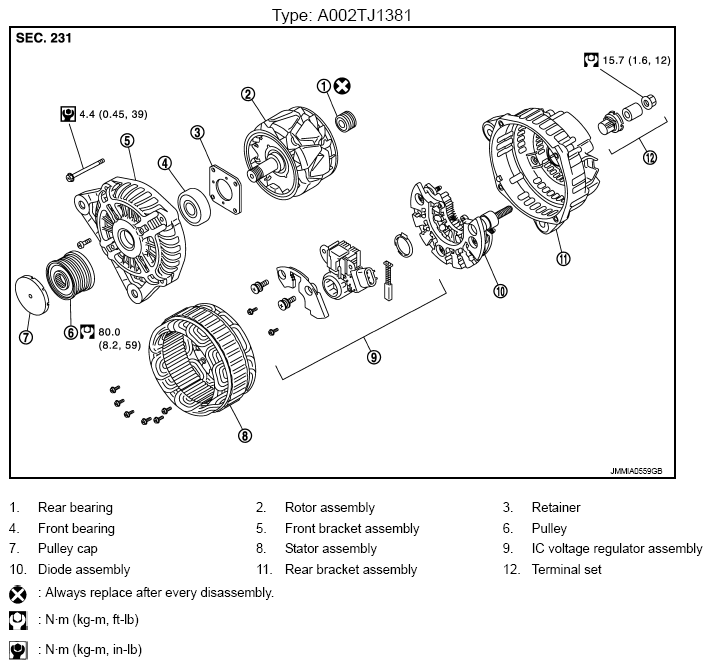

Fig 1: Disassembled View Of Alternator With Torque Specifications (Type: A002TJ1381)
G08709693Courtesy of NISSAN NORTH AMERICA, INC.
