Exploded View

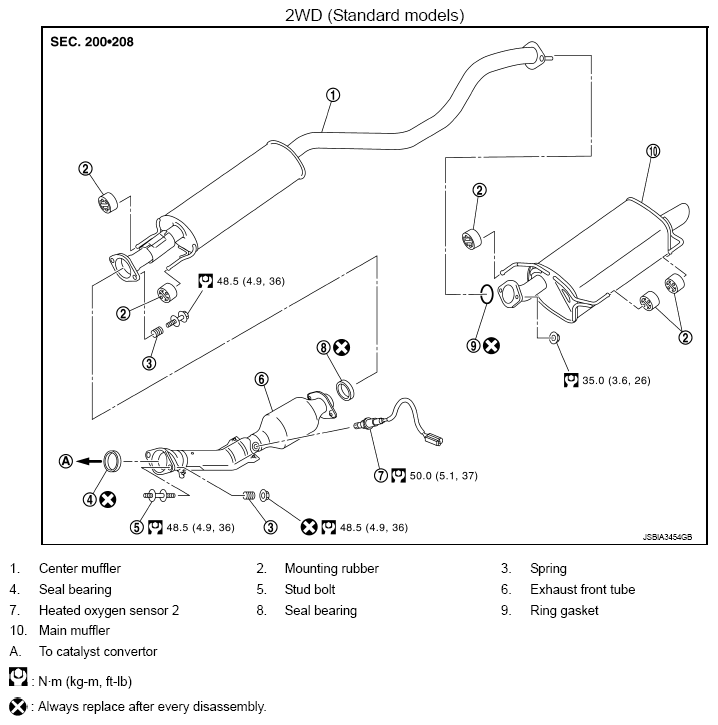

Fig 1: Exploded View Of Exhaust System With Torque Specifications (2WD - Standard Models)

Courtesy of NISSAN NORTH AMERICA, INC.

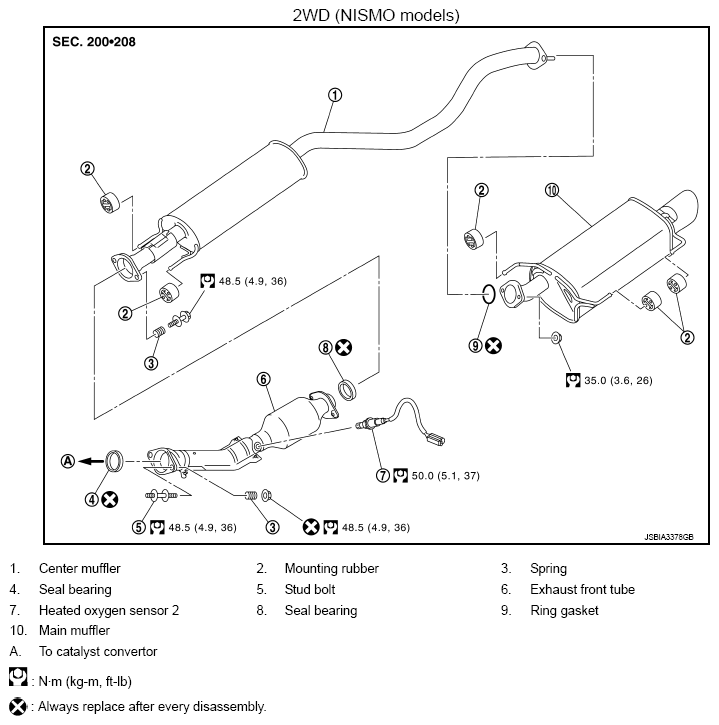

Fig 2: Exploded View Of Exhaust System With Torque Specifications (2WD - NISMO Models)

Courtesy of NISSAN NORTH AMERICA, INC.

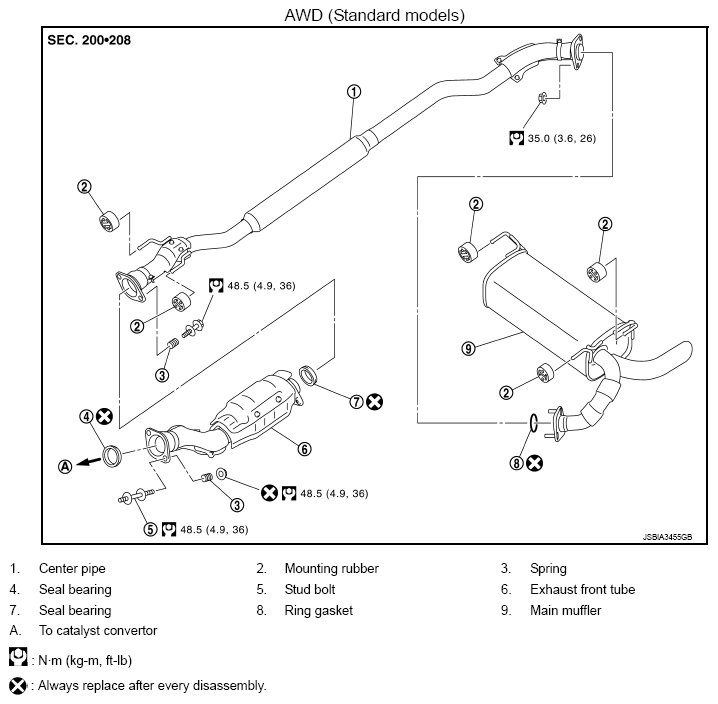

Fig 3: Exploded View Of Exhaust System With Torque Specifications (AWD - Standard Models)

Courtesy of NISSAN NORTH AMERICA, INC.

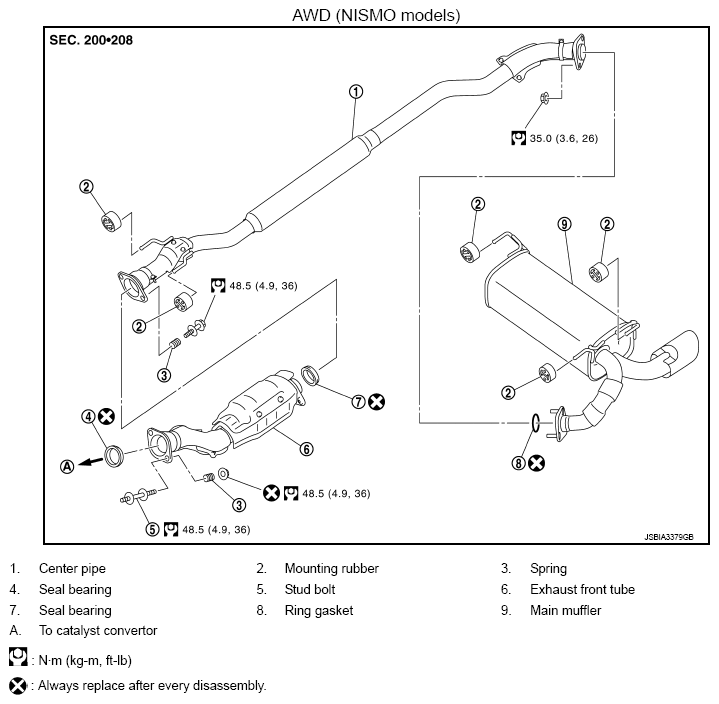

Fig 4: Exploded View Of Exhaust System With Torque Specifications (AWD - NISMO Models)

Courtesy of NISSAN NORTH AMERICA, INC.
