Turbocharger Boost Control
›
TURBOCHARGER BOOST CONTROL: System Description
›
Boost Control Actuator Line Drawing
Boost Control Actuator Line Drawing

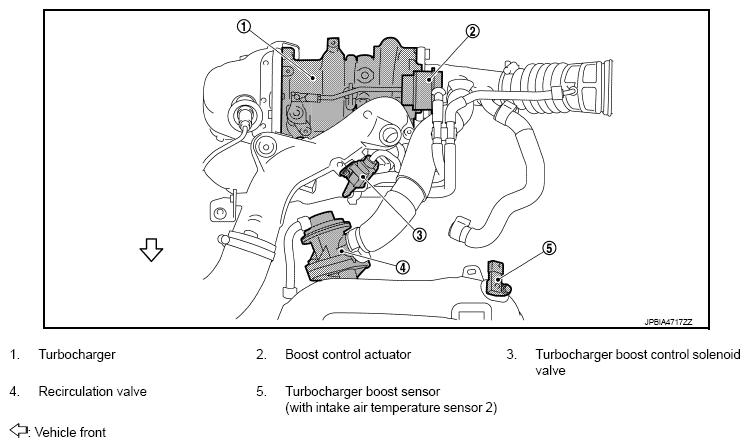

Fig 1: Identifying Boost Control Actuator, Turbocharger Boost Control Solenoid Valve, Recirculation Valve And Turbocharger Boost Sensor
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
