Engine Control System (Introduction)
›
System Description
›
System
›
Cooling Fan Control
›
COOLING FAN CONTROL: System Diagram
COOLING FAN CONTROL: System Diagram

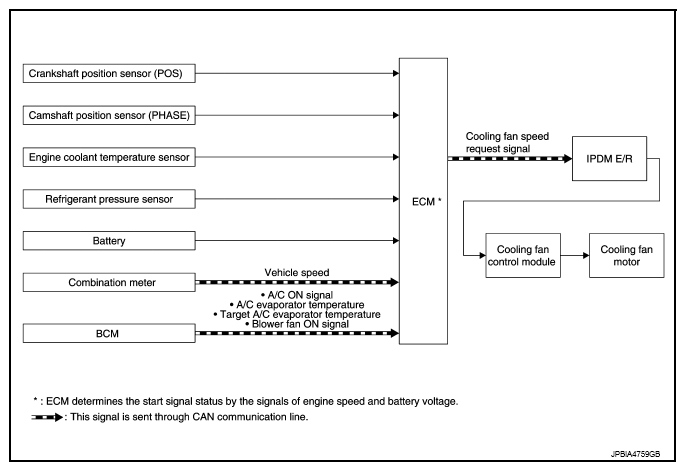

Fig 1: Cooling Fan Control System Diagram
