Engine Lubrication System Schematic

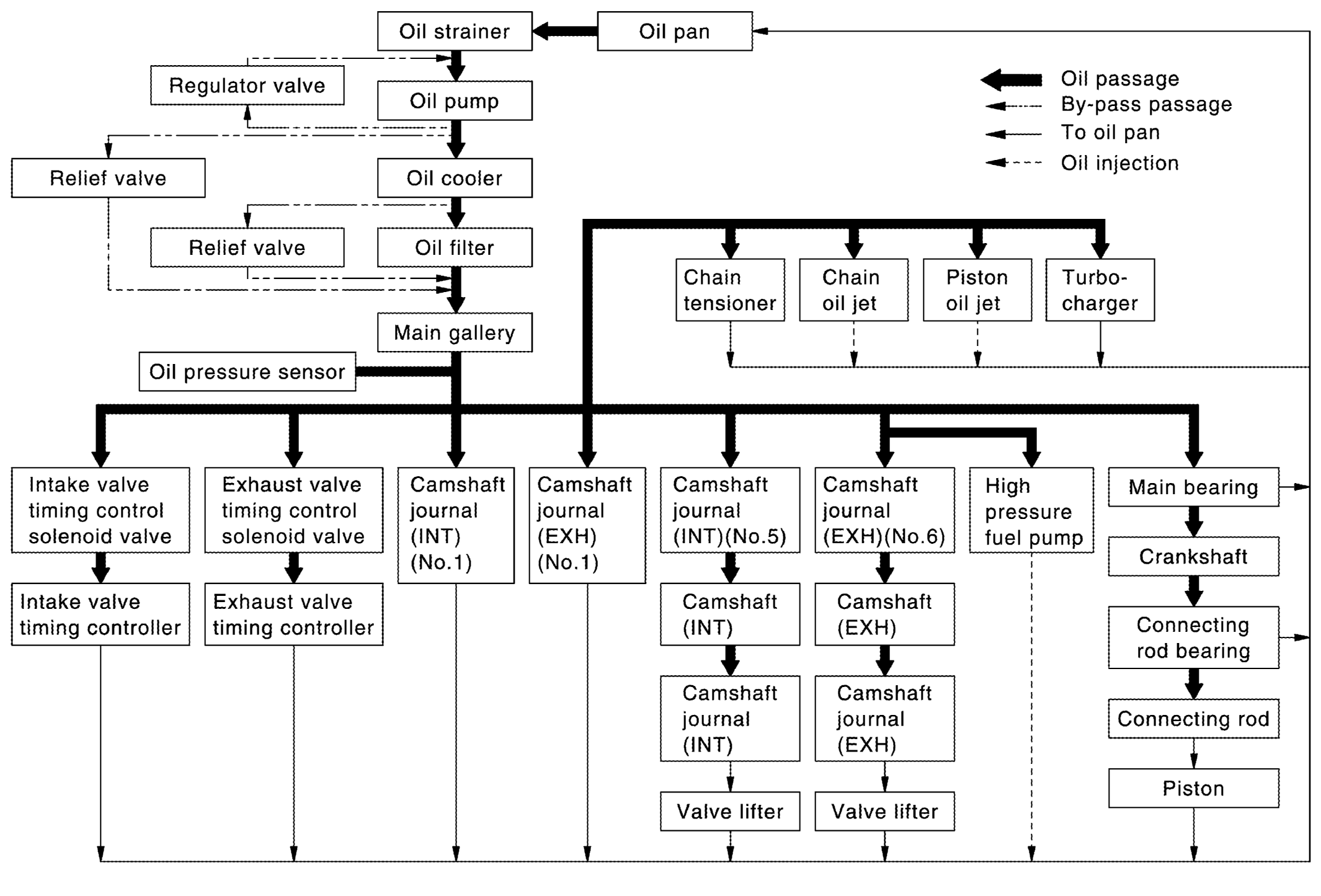

Fig 1: Engine Lubrication System Schematic
G06932788Courtesy of NISSAN NORTH AMERICA, INC.
