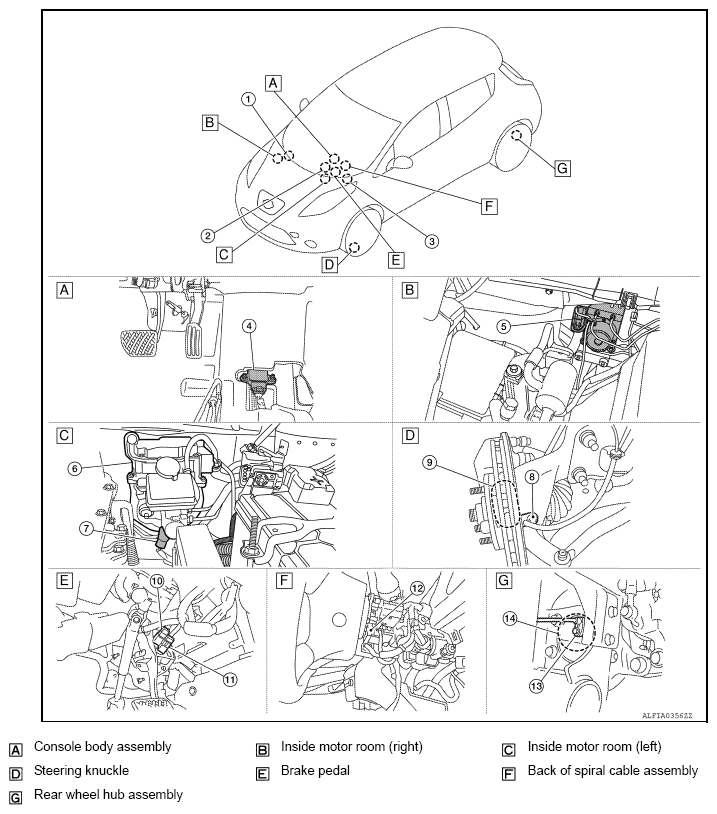

Component Parts Location
| No. | Component parts | Function | ||
|---|---|---|---|---|
| (1) | VCM | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.
Refer to "COMPONENT PARTS LOCATION " for detailed installation location. |
||
| (2) | Combination meter | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication.
Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication.
Refer to "METER SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location. |
||
| (3) | VDC OFF switch | "VDC OFF SWITCH " | ||
| (4) | Yaw rate/side/decel G sensor | "YAW RATE/SIDE/DECEL G SENSOR " | ||
| (5) | ABS actuator and electric unit (control unit) | "ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) " | ||
| (6) | Electrically-driven intelligent brake | Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication and brake communication line(1).
|
||
| (7) | Master cylinder pressure sensor | "MASTER CYLINDER PRESSURE SENSOR " | ||
| (8) | Front wheel sensor | "WHEEL SENSOR AND SENSOR ROTOR " | ||
| (9) | Front sensor rotor | |||
| (10) | Stop lamp switch | "STOP LAMP SWITCH " | ||
| (11) | ASCD brake switch | "ASCD BRAKE SWITCH " | ||
| (12) | Steering angle sensor | "STEERING ANGLE SENSOR " | ||
| (13) | Rear wheel sensor | "WHEEL SENSOR AND SENSOR ROTOR " | ||
| (14) | Rear sensor rotor | |||
|
||||
