Removal And Installation
›
Horn
›
Exploded View
Exploded View

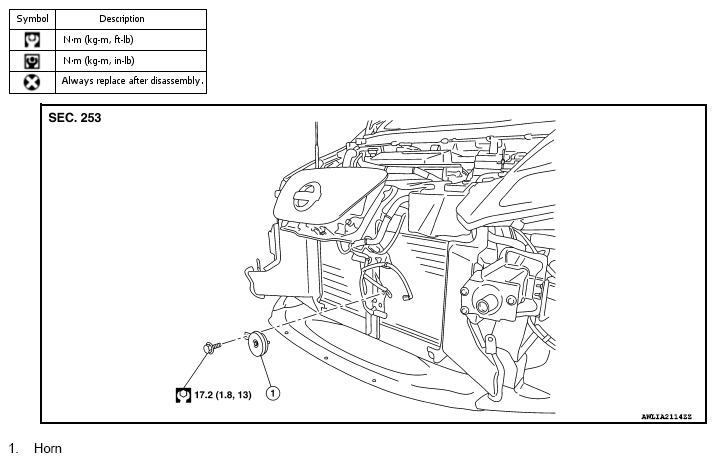

Fig 1: Exploded View Of Horn With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
