System Description
›
System
›
Li-Ion Battery Charge Control
›
LI-ION BATTERY CHARGE CONTROL: Normal Charge Control
›
System Diagram
System Diagram

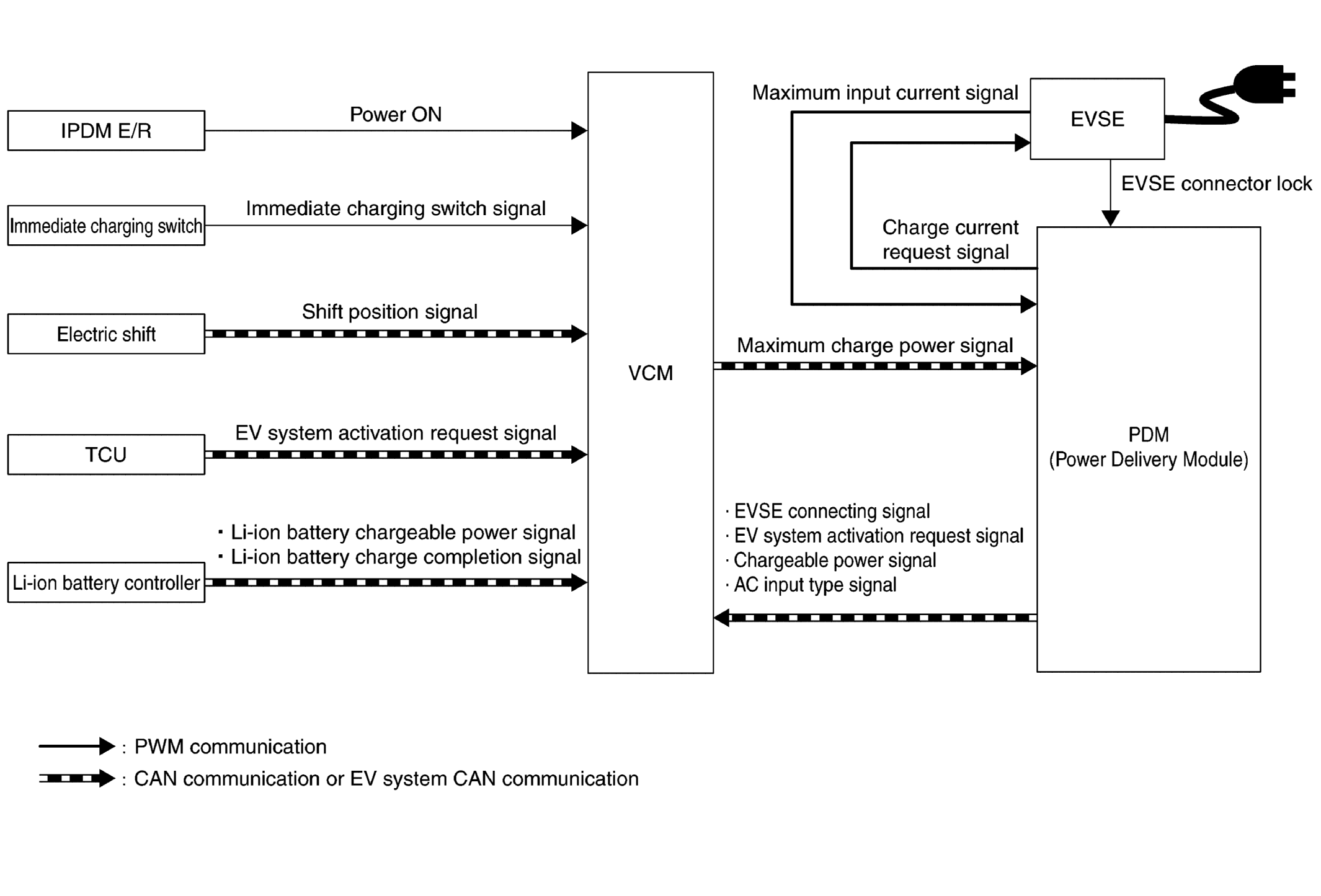

Fig 1: Li-Ion Battery Charge Control System Diagram (Normal Charge Control)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
