Yaw Rate/Side/DECEL G Sensor
›
Exploded View
Exploded View

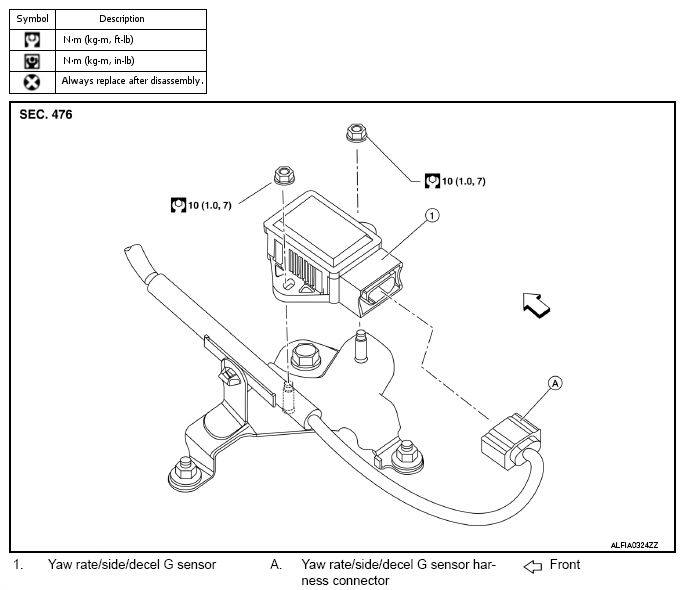

Fig 1: Exploded View Of Yaw Rate/Side/Decel G Sensor
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
