Engine Control System (Introduction)
›
System Description
›
Variable Induction Air System
›
System Description
›
Vacuum Hose Drawing
Vacuum Hose Drawing

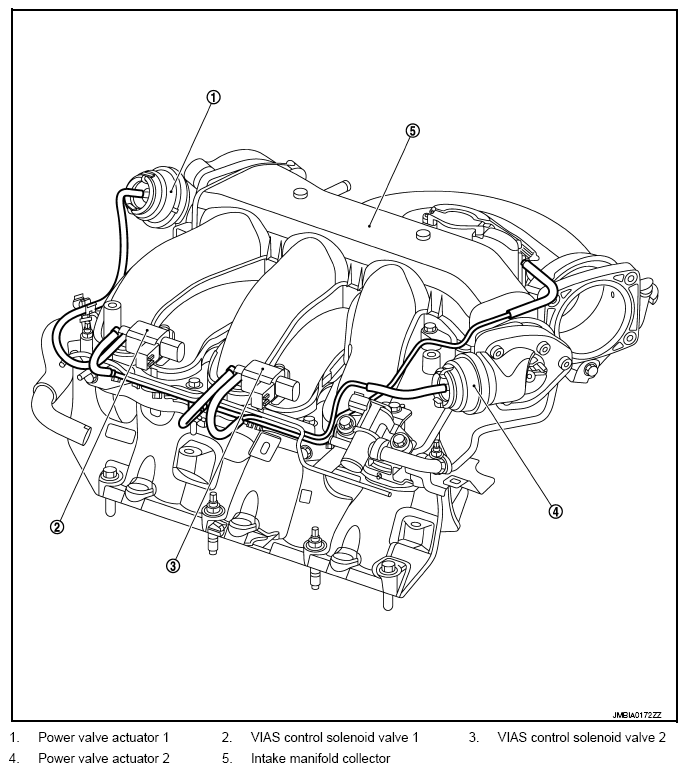

Fig 1: Identifying Vacuum Hose Drawing
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
