Telescopic Motor
›
Exploded View
Exploded View

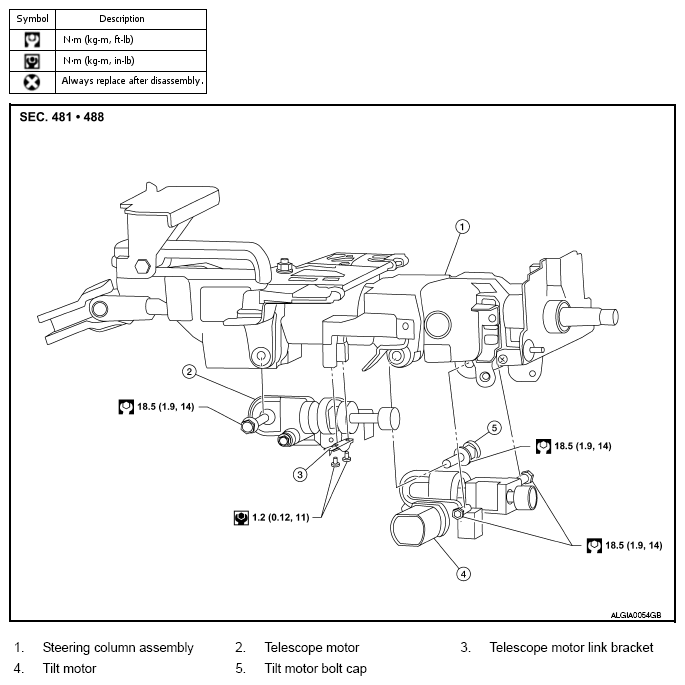

Fig 1: Exploded View Of Telescopic Motor
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
