Exploded View
Exploded View

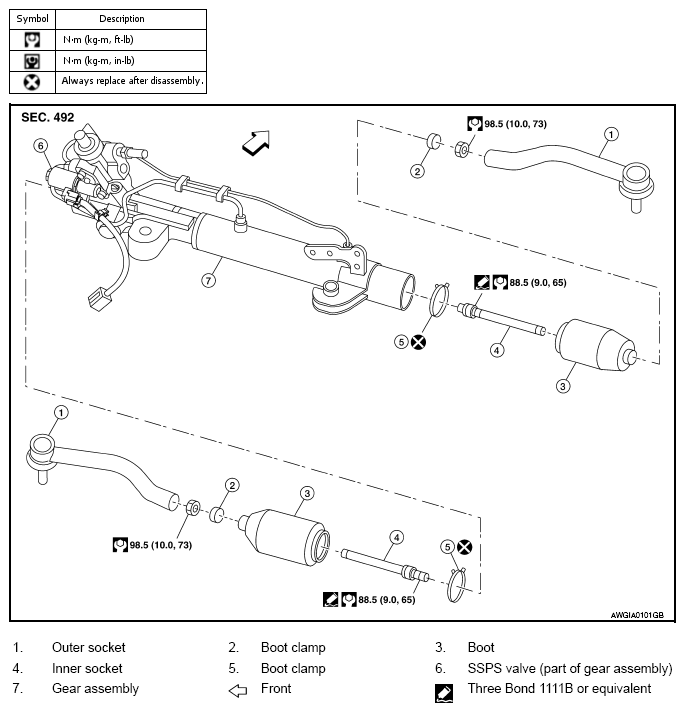

Fig 1: Exploded View Of Steering Gear And Linkage
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
