Generator
›
Exploded View
Exploded View

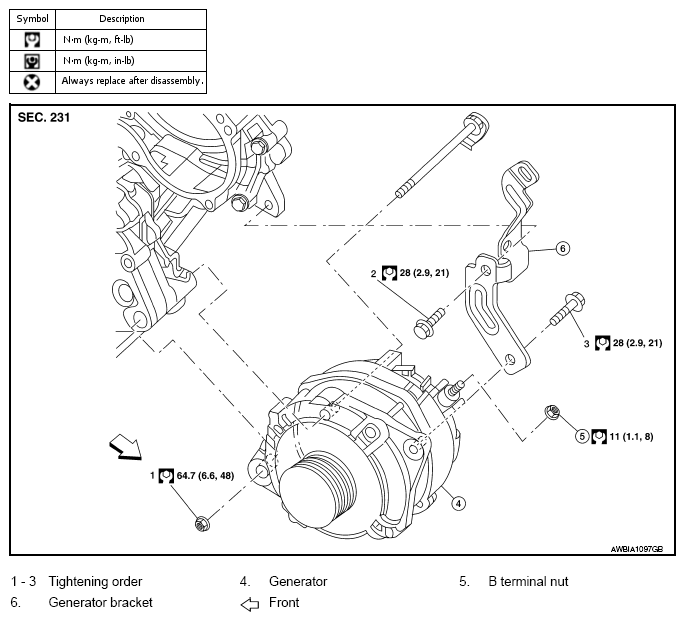

Fig 1: Exploded View Of Generator
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
