Component Parts Location

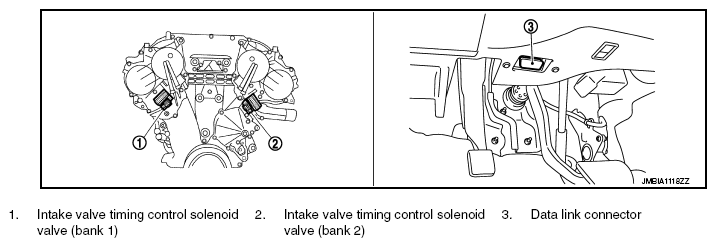

Fig 1: Identifying Air Conditioning Cut Control System Component Parts Location (1 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

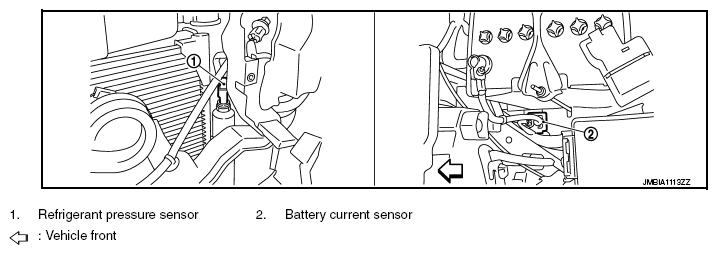

Fig 2: Identifying Air Conditioning Cut Control System Component Parts Location (2 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

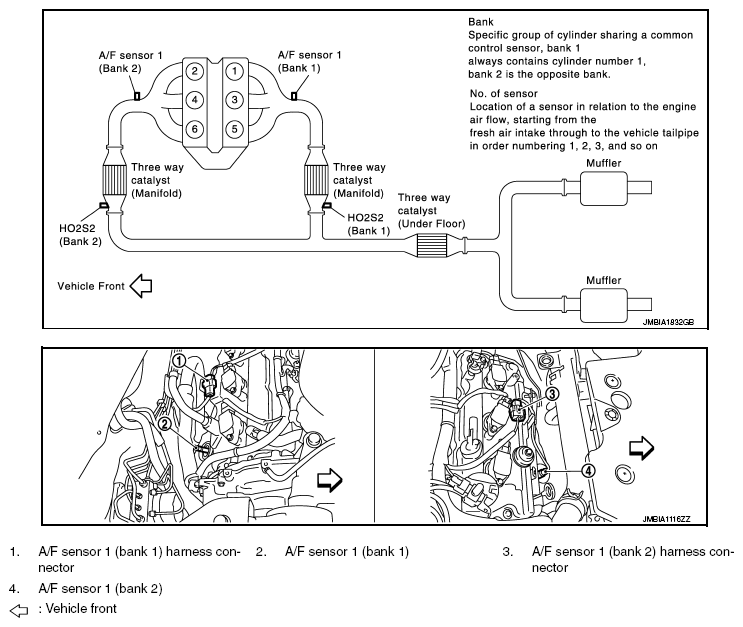

Fig 3: Identifying Air Conditioning Cut Control System Component Parts Location (3 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

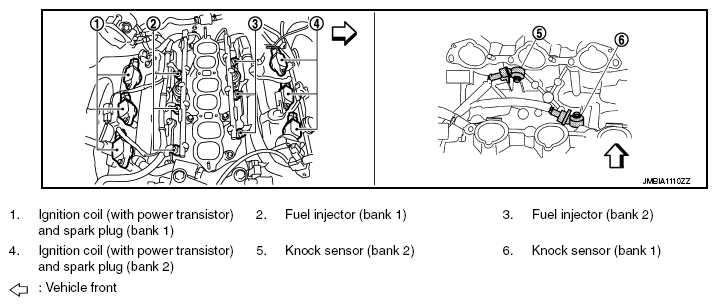

Fig 4: Identifying Air Conditioning Cut Control System Component Parts Location (4 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

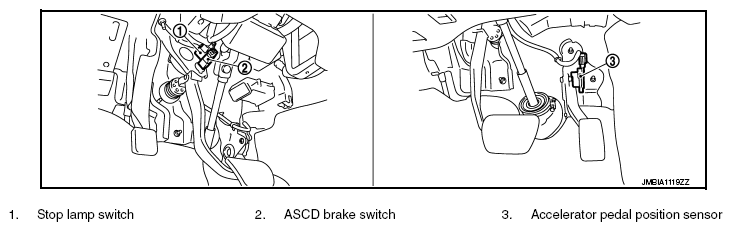

Fig 5: Identifying Air Conditioning Cut Control System Component Parts Location (5 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

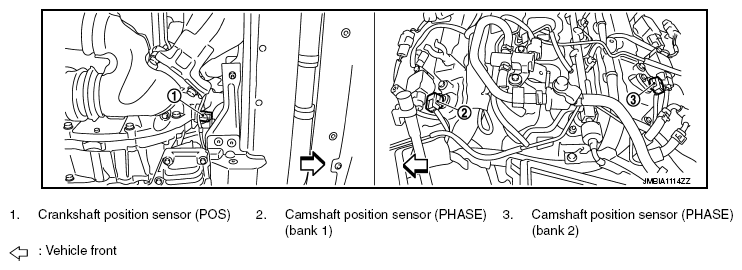

Fig 6: Identifying Air Conditioning Cut Control System Component Parts Location (6 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

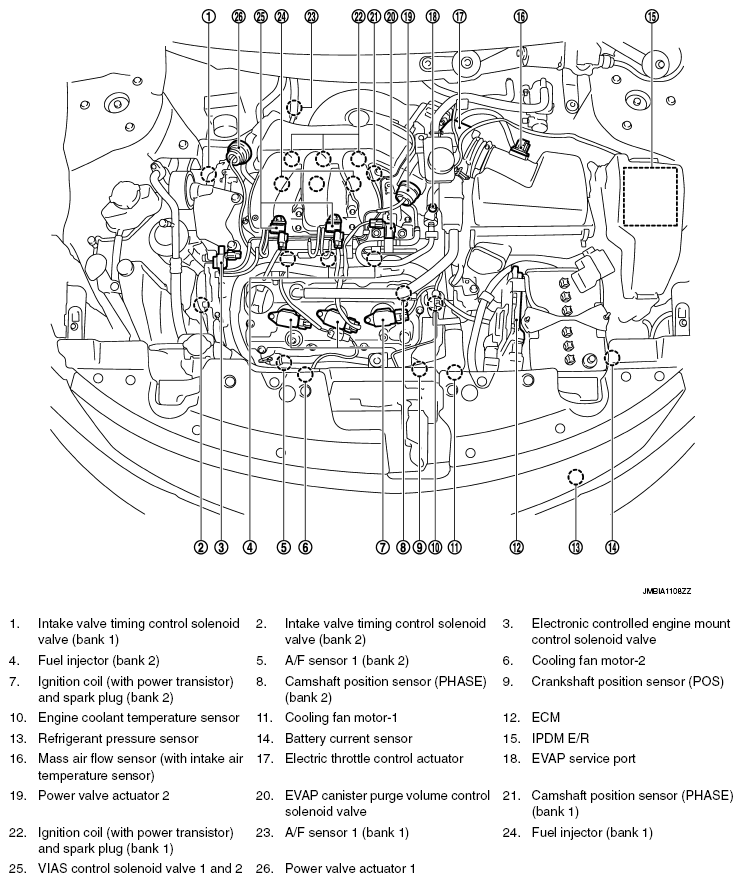

Fig 7: Identifying Air Conditioning Cut Control System Component Parts Location (7 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

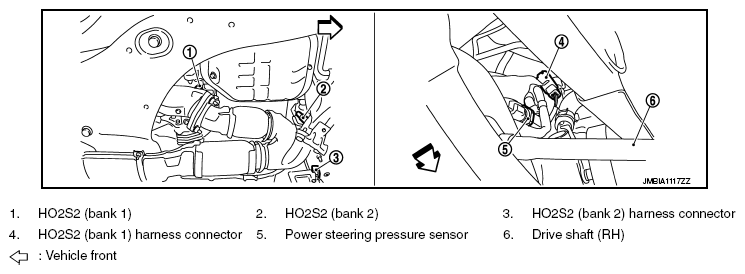

Fig 8: Identifying Air Conditioning Cut Control System Component Parts Location (8 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

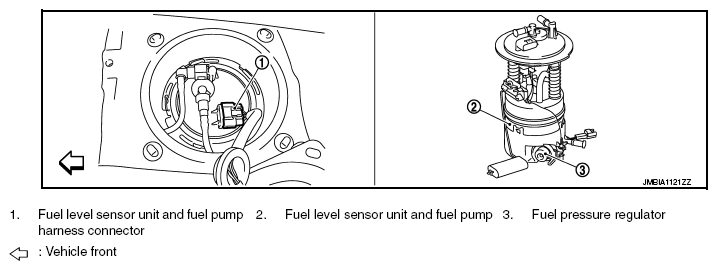

Fig 9: Identifying Air Conditioning Cut Control System Component Parts Location (9 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

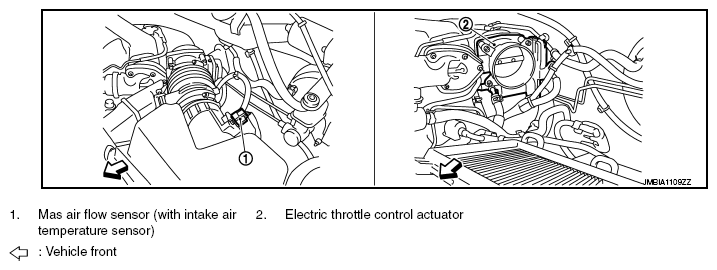

Fig 10: Identifying Air Conditioning Cut Control System Component Parts Location (10 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

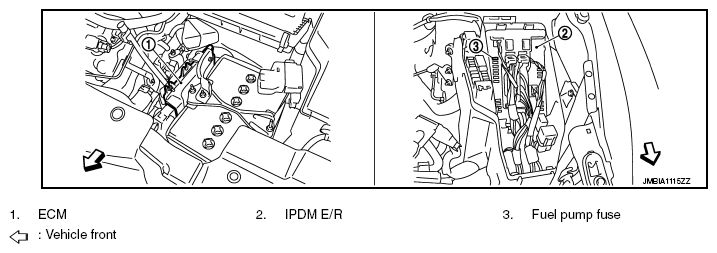

Fig 11: Identifying Air Conditioning Cut Control System Component Parts Location (11 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

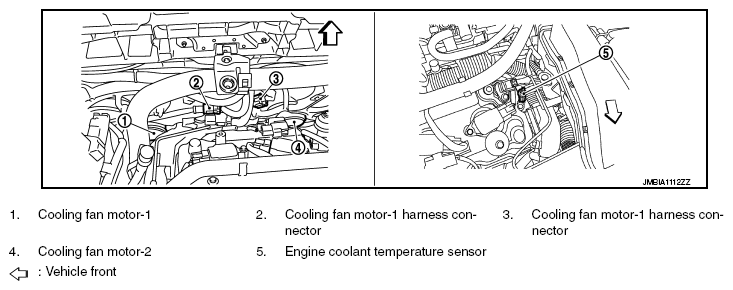

Fig 12: Identifying Air Conditioning Cut Control System Component Parts Location (12 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

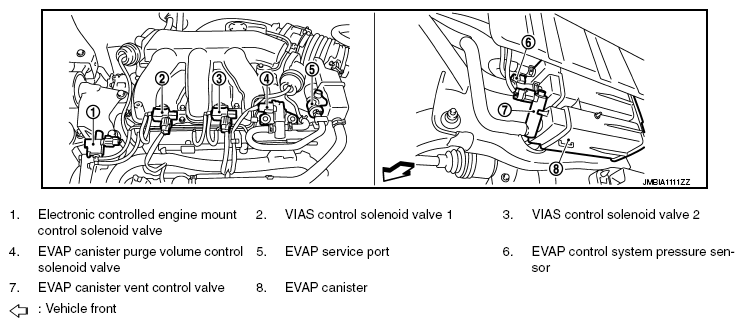

Fig 13: Identifying Air Conditioning Cut Control System Component Parts Location (13 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

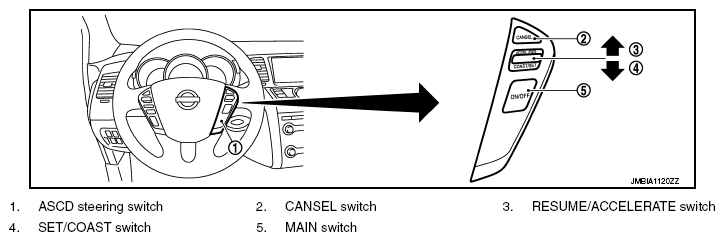

Fig 14: Identifying Air Conditioning Cut Control System Component Parts Location (14 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.
