FixVault
Home
›
Nissan-Datsun
›
2013
›
NV200 S
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Brake Control System
›
Removal And Installation
›
Wheel Sensor
›
Exploded View - Front Wheel Sensor
Exploded View - Front Wheel Sensor

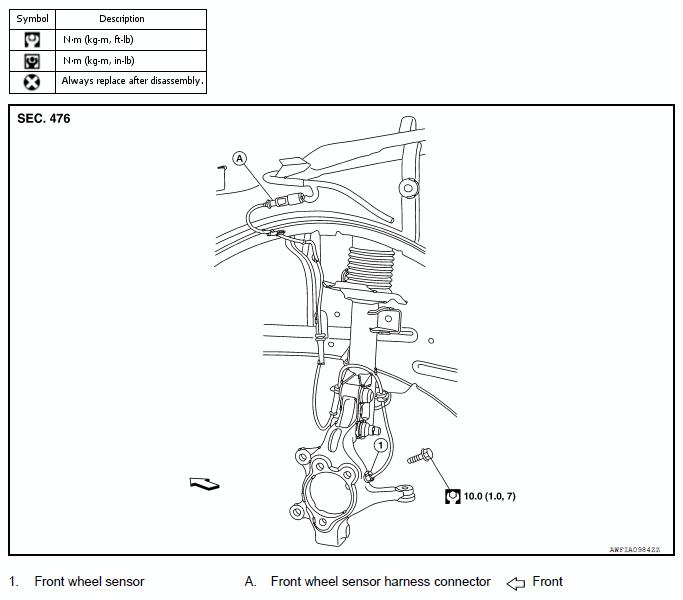

Fig 1: Exploded View Of Front Wheel Sensor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
