Nissan-Datsun
›
2013
›
NV3500 HD SL
›
Repair and Diagnosis
›
Transmission
›
Automatic Transmission
›
Removal And Installation
›
A/T Shift Selector
›
Exploded View
Exploded View

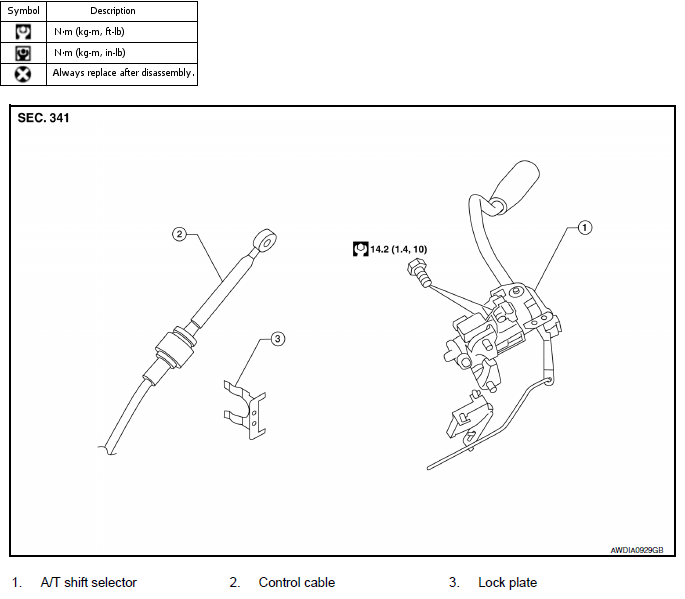

Fig 1: Exploded View Of A/T Shift Selector With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
