FixVault
Home
›
Nissan-Datsun
›
2013
›
NV3500 HD SL
›
Repair and Diagnosis
›
Transmission
›
Automatic Transmission
›
Removal And Installation
›
Control Cable
›
Exploded View
Exploded View

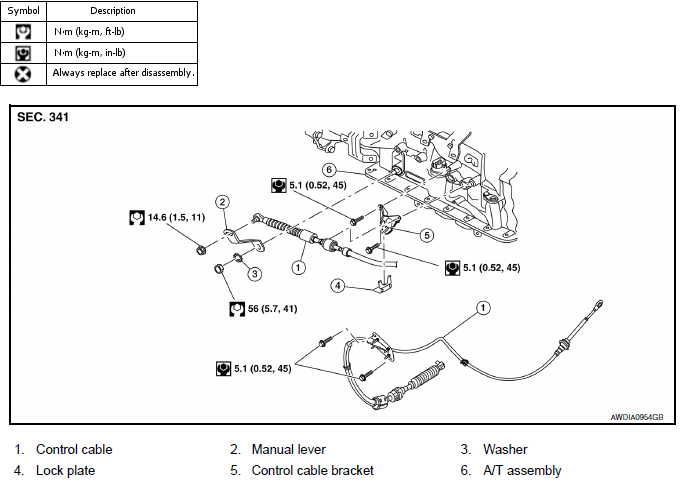

Fig 1: Exploded View Of Control Cable With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
