Exploded View
Exploded View

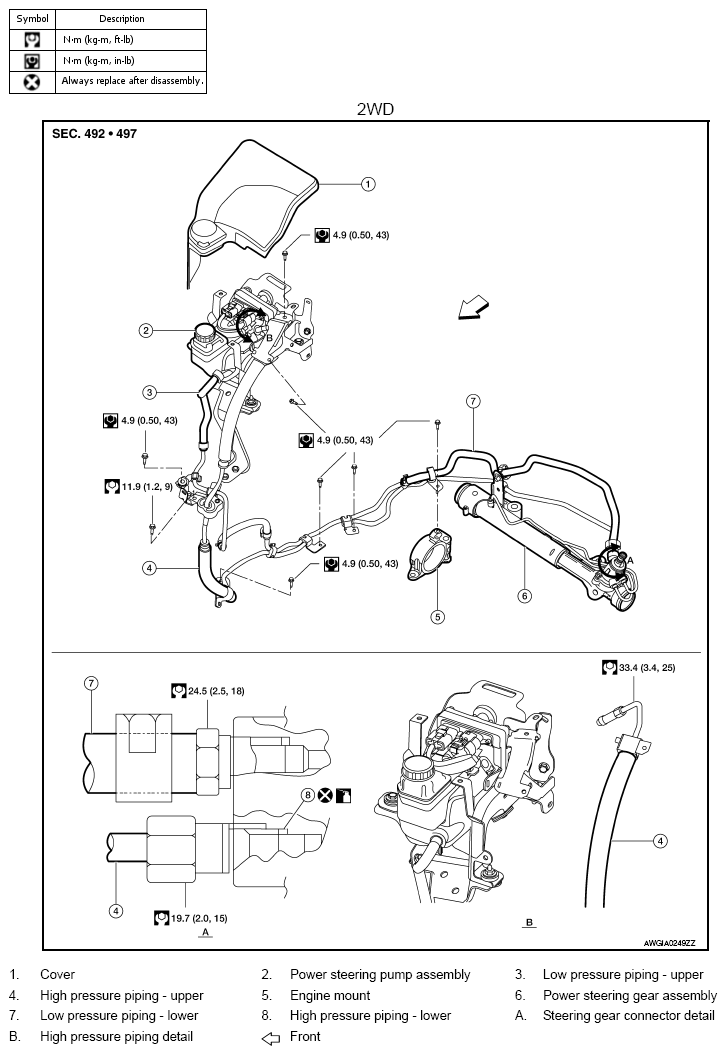

Fig 1: Exploded View Of Hydraulic Line (2WD)
Courtesy of NISSAN NORTH AMERICA, INC.

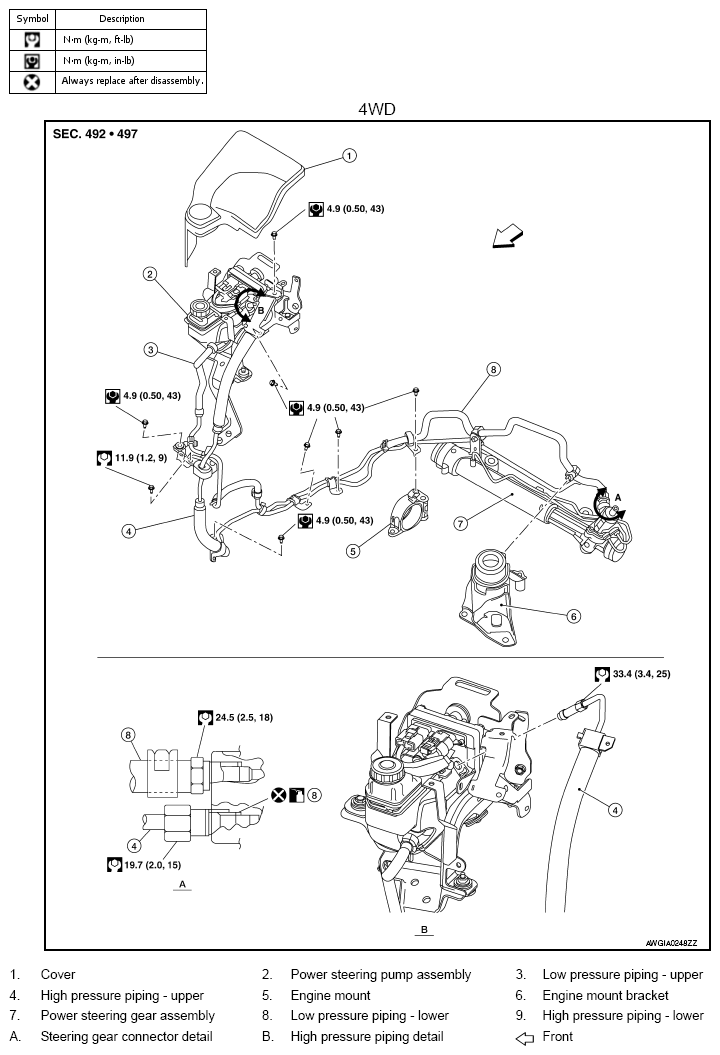

Fig 2: Exploded View Of Hydraulic Line (4WD)
Courtesy of NISSAN NORTH AMERICA, INC.
