Yaw Rate/Side/DECEL G Sensor
›
Exploded View
Exploded View

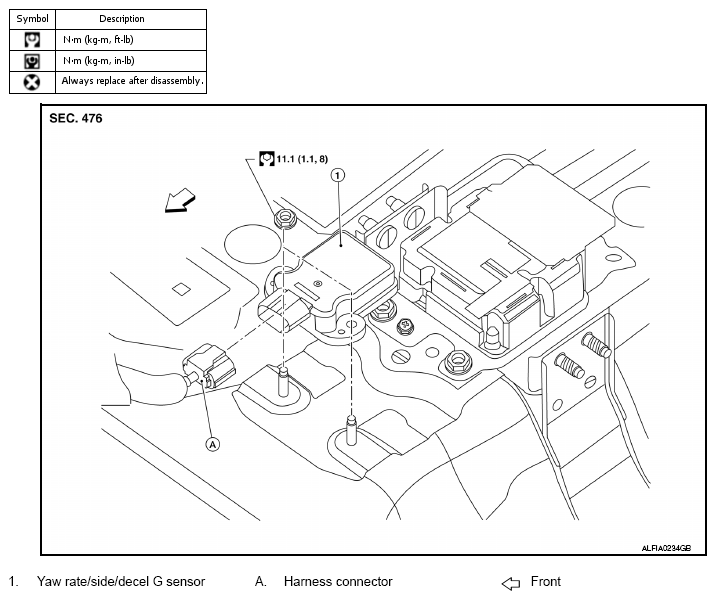

Fig 1: Yaw Rate/Side/Decel G Sensor And Harness Connector With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
