Notes
Disassembly and Assembly: Notes

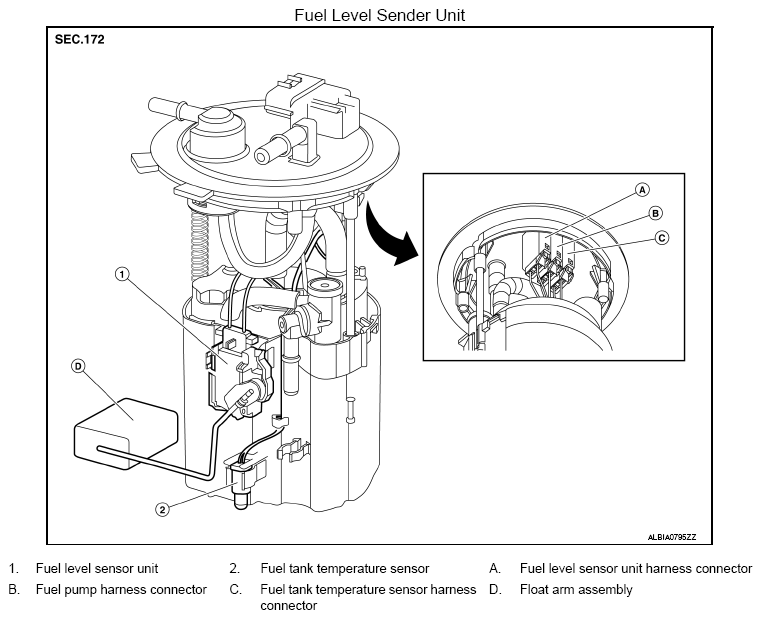

Fig 1: Identifying Fuel Level Sender Unit Components
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
