Front Regulator
›
Exploded View
Exploded View

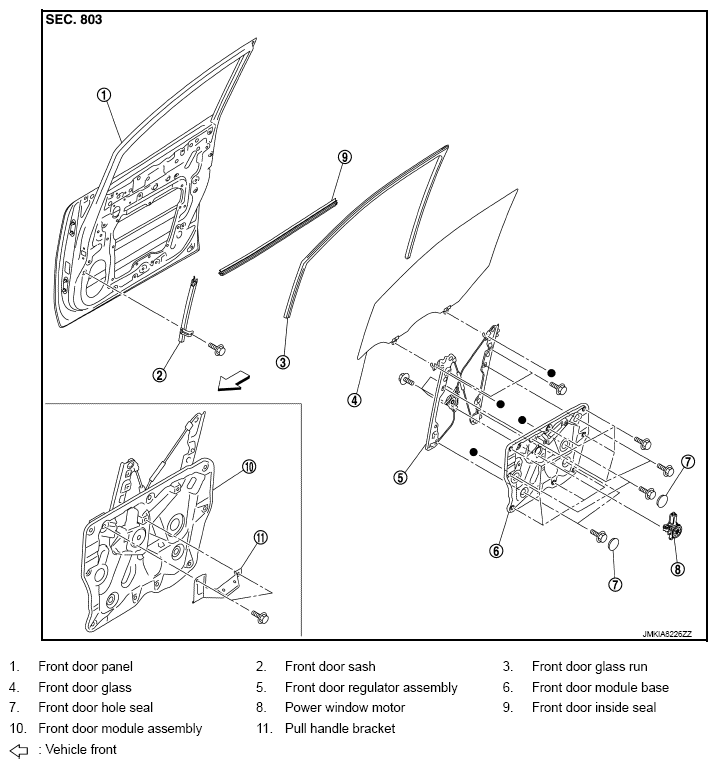

Fig 1: Exploded View Of Front Regulator
Courtesy of NISSAN NORTH AMERICA, INC.
