Repair and Diagnosis
›
Brakes
›
Anti-Lock Brakes
›
Brake Control System
›
System Description
›
System
›
Circuit Diagram
Circuit Diagram

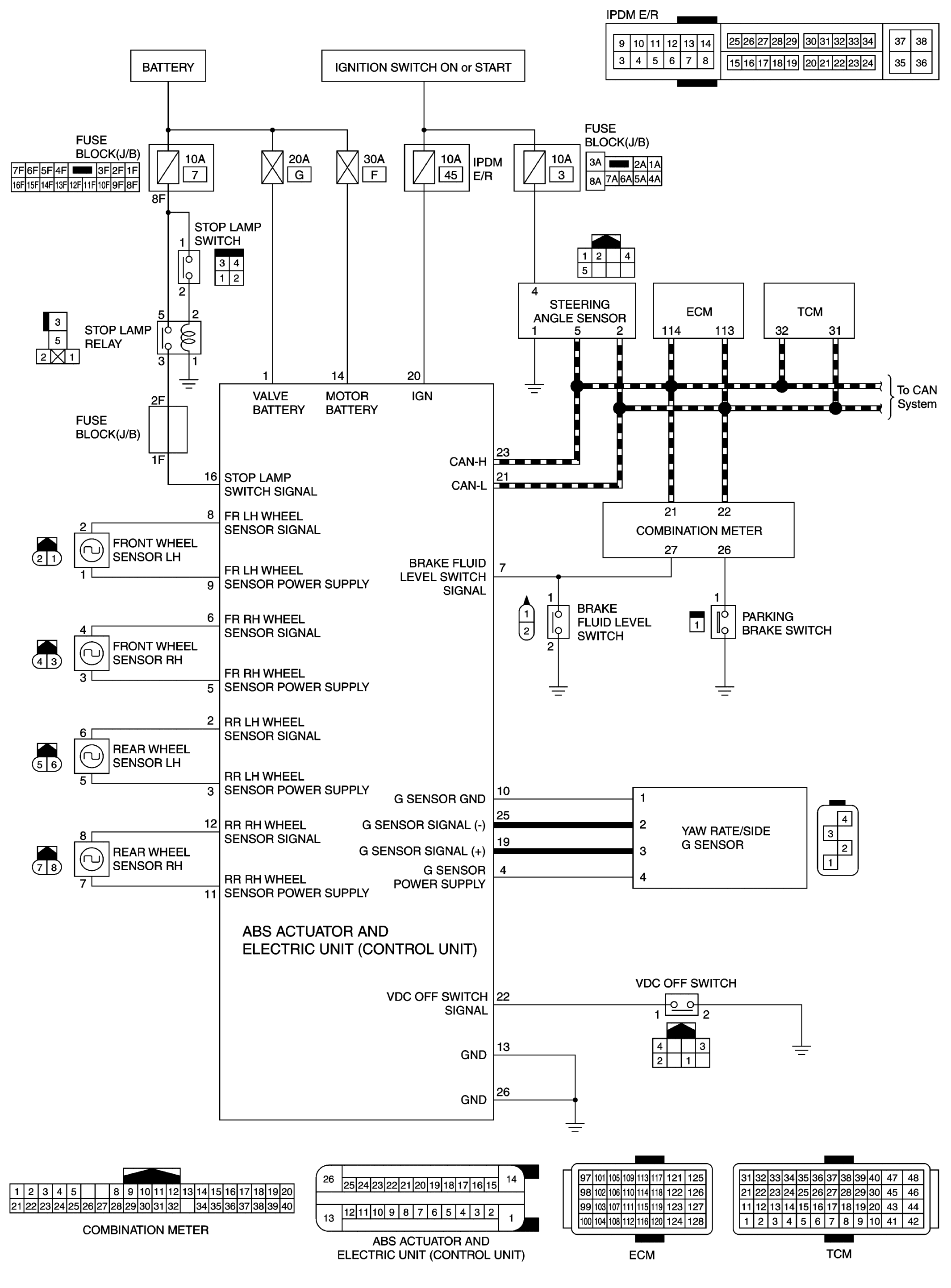

Fig 1: Brake Control System Wiring Diagrams With Connector End Views
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
