Repair and Diagnosis
›
Brakes
›
Traction Control
›
Brake Control System
›
Removal And Installation
›
Yaw Rate/Side/DECEL G Sensor
›
Exploded View
Exploded View

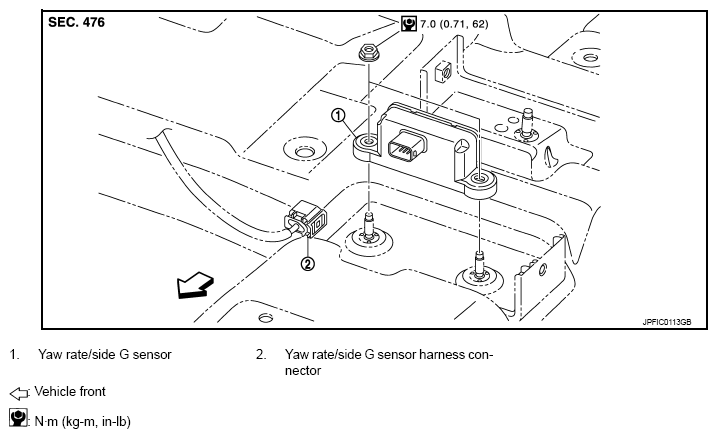

Fig 1: Exploded View Of Yaw Rate/Side/Decel G Sensor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
